| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
857 pcs
|
857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Frequency | |
| Current | |
| ESD Protection | |
| Industrial Grade | |
| Interface | |
| Interrupt Output | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The Diodes Incorporated PI4IOE5V96248ZLEX is a 48-bit I2C bus I/O expander designed for general-purpose remote I/O expansion. It interfaces with microcontrollers via the I2C-bus and supports Fast-mode Plus. The device operates with a power supply voltage ranging from 2.3V to 5.5V and offers 5.0V tolerant I/Os.
Key features include a 1MHz I2C-bus interface, 48 remote I/O pins that default to inputs at power-up, and an active LOW open-drain interrupt output. The PI4IOE5V96248ZLEX provides latched outputs with 25 mA sink capability for directly driving LEDs and has a total package sink capability of 1200 mA. It supports 64 programmable slave addresses using three address pins.

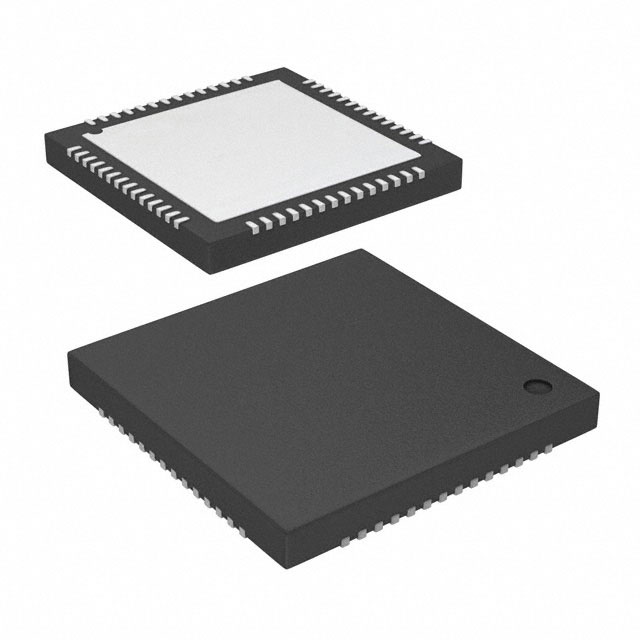

This I/O expander is offered in a 56-TQFN (7x7mm) package, suitable for surface mounting. It also includes ESD protection and latch-up testing exceeding 100mA. The low standby current makes it an efficient choice for various applications requiring I/O expansion.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 2.3V to 5.5V.
It is available in a 56-TQFN (7x7mm) package.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
