| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1530 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Current | |
| Features | |
| Interface | |
| Interrupt Output | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

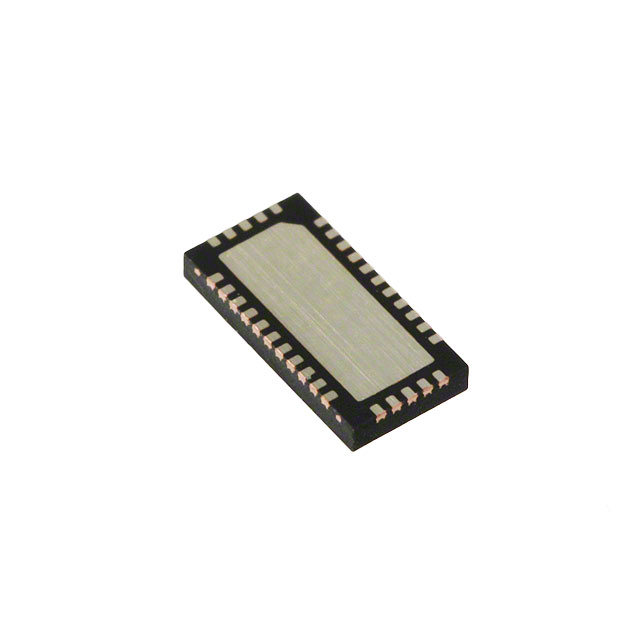

The PI4IOE5V96224ZLEX from Diodes Incorporated is a 24-bit remote I/O expander designed for general-purpose expansion via the I2C-bus. It supports Fast-mode Plus I2C-bus operation up to 1MHz and is compliant with both Fast and Standard modes.
This I/O expander operates with a supply voltage ranging from 2.3V to 5.5V, with I/O pins that are 5.0V tolerant. It offers 24 quasi-bidirectional I/O pins that default to inputs at power-up. The device features latched outputs with a 25 mA sink capability, suitable for directly driving LEDs, and a total package sink capability of 600 mA. An active LOW open-drain interrupt output is also included, allowing the expander to signal the microcontroller without constant I2C communication.
The PI4IOE5V96224ZLEX is supplied in a 32-TQFN (3x6) package, suitable for surface mounting. It has an operating temperature range of -40°C to 85°C. The device supports 64 programmable slave addresses using three address pins, enabling multiple devices on the same bus without conflicts. Its low standby current and Power-On Reset (POR) feature contribute to efficient system design.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is from 2.3V to 5.5V.
It is available in a 32-WFQFN Exposed Pad package, specifically a 32-TQFN (3x6) supplier device package.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The device supports a clock frequency of 1 MHz.
It provides 24 I/O pins.
