PI4IOE5V6408ZTAEX The Diodes Incorporated PI4IOE5V6408ZTAEX is an 8-bit I2C I/O expander. It operates at a 1MHz clock frequency and supports a voltage range of 1.65V to 3.6V.
Mfr Part #:

PI4IOE5V6408ZTAEX

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated PI4IOE5V6408ZTAEX is an 8-bit I2C I/O expander. It operates at a 1MHz clock frequency and supports a voltage range of 1.65V to 3.6V.
✓ Total Stock: 45,000 pcs
$ Price Range: $1.15

PI4IOE5V6408ZTAEX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
45,000 pcs
On Request
45000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI4IOE5V6408ZTAEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Halogen Free
Interface
Interrupt Output
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Output Type
Supplier Device Package
Voltage
View Similar Products (0)

PI4IOE5V6408ZTAEX Description

Short technical summary and product information.

The Diodes Incorporated PI4IOE5V6408ZTAEX is an 8-bit general-purpose I/O expander designed for remote I/O expansion via the I2C-bus interface. It is suitable for applications requiring additional I/Os with minimal interconnections, such as battery-powered mobile devices.



Key electrical specifications include an operating power supply voltage range of 1.65V to 3.6V and an I2C-bus interface clock frequency of 1MHz. It features an active LOW open-drain interrupt output and programmable pull-up/pull-down resistors for GPIO inputs. The device also offers low standby current consumption, typically 1.5 μA at 3.3V VDD.

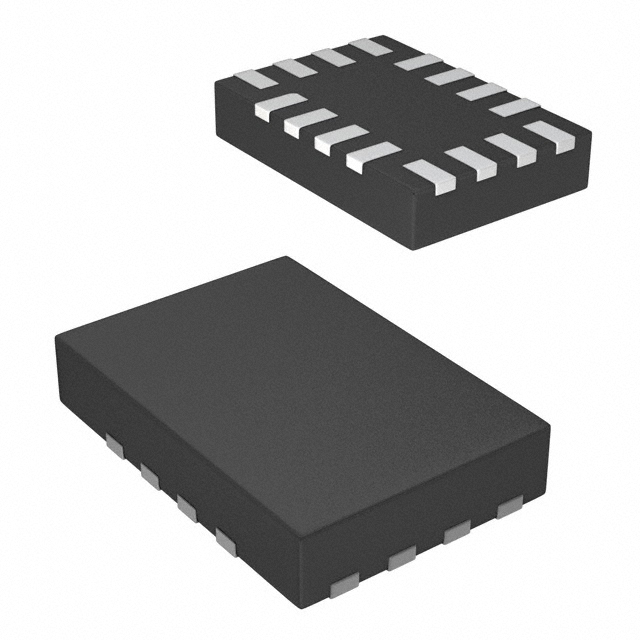

This I/O expander is available in a 16-pin UQFN package and supports surface mount installation. It operates within a temperature range of -40°C to 85°C. The device is compliant with RoHS3 standards and is considered lead-free and halogen-free.



It allows for bidirectional voltage-level translation and GPIO expansion between various voltage levels, including 1.8V, 2.5V, and 3.3V ports, making it adaptable to different system requirements.

PI4IOE5V6408ZTAEX Quick Information

Product Type: I/O Expander
Canonical Name: 8-bit I2C I/O Expander
Subcategory: I/O Expander

PI4IOE5V6408ZTAEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead -Free

PI4IOE5V6408ZTAEX Estimated Pricing

Qty Low High
1+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI4IOE5V6408ZTAEX Features

  • 8-bit I2C I/O expander.
  • 1MHz I2C-bus interface.
  • 1.65V to 3.6V operating voltage.
  • Low standby current consumption.
  • 16-UQFN package for surface mounting.

PI4IOE5V6408ZTAEX Applications

  • Remote I/O expansion.
  • Interfacing with microcontrollers.
  • Battery-powered mobile applications.
  • Sensor and button interfacing.

PI4IOE5V6408ZTAEX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the PI4IOE5V6408ZTAEX?

The operating voltage range is 1.65V to 3.6V.

What is the clock frequency of the I2C interface?

The I2C-bus interface clock frequency is 1 MHz.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the PI4IOE5V6408ZTAEX available in?

It is available in a 16-UQFN (1.8x2.6) package.

Does the PI4IOE5V6408ZTAEX have an interrupt output?

Yes, it features an active LOW open-drain interrupt output.

What is the standby current consumption?

The low standby current consumption is typically 1.5 μA at 3.3 V VDD.
