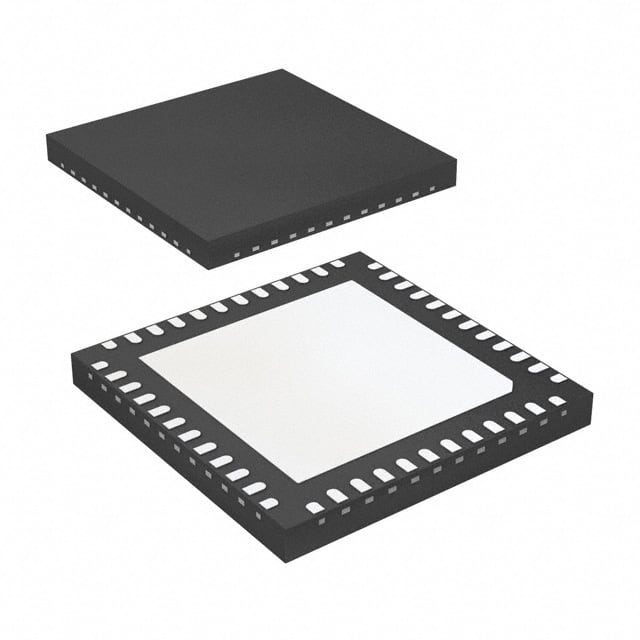

PI3VDP411LSAZBEX The Diodes Incorporated PI3VDP411LSAZBEX is an IC interface specialized for HDMI level shifting. It operates at 3.3V and supports data rates up to 2.5Gbps per lane.
Mfr Part #:

PI3VDP411LSAZBEX

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated PI3VDP411LSAZBEX is an IC interface specialized for HDMI level shifting. It operates at 3.3V and supports data rates up to 2.5Gbps per lane.
✓ Total Stock: 60,000 pcs
$ Price Range: $6.39

PI3VDP411LSAZBEX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
60,000 pcs
On Request
60000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI3VDP411LSAZBEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Data Rate
ESD Protection
Lead Spacing
Mounting Type
Operation
Supplier Device Package
Supplier Package
Termination
Voltage
View Similar Products (0)

PI3VDP411LSAZBEX Description

Short technical summary and product information.

The Diodes Incorporated PI3VDP411LSAZBEX is a specialized interface IC designed for Dual-mode DisplayPort transmitters operating in HDMI mode. It automatically converts AC-coupled video signals into an HDMI rev 1.3 compliant signal with proper signal swing. This device supports data rates up to 2.5Gbps per lane, enabling 12-bit color depth per channel.



Key features include integrated 50-ohm termination resistors for AC-coupled differential inputs, output squelch function, and an enable/disable feature for low-power states. It also offers output slew rate control to minimize EMI and integrated active/passive DDC level shifters. The operation is transparent, requiring no re-timing or configuration.



This IC is housed in a 48-TQFN (7x7mm) package and is surface-mount compatible. It operates within a voltage range of 3V to 3.6V and provides ESD protection up to 4kV HBM and ±8kV contact.



Applications include DVI and HDMI level switching, making it suitable for display connectivity solutions.

PI3VDP411LSAZBEX Quick Information

Product Type: Interface IC
Canonical Name: PI3VDP411LSAZBEX Dual Mode DisplayPort to HDMI Level Shifter
Subcategory: DisplayPort to HDMI Level Shifter

PI3VDP411LSAZBEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PI3VDP411LSAZBEX Estimated Pricing

Qty Low High
1+ $6.39 $6.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI3VDP411LSAZBEX Features

  • Converts DisplayPort to HDMI signals.
  • Supports 2.5Gbps data rate per lane.
  • Provides 12-bit color depth per channel.
  • Integrated 50-ohm termination resistors.
  • Surface mount 48-TQFN package.

PI3VDP411LSAZBEX Applications

  • Ideal for HDMI and DVI signal switching
  • Used in high-speed digital video interfaces
  • Suitable for consumer electronics devices
  • Supports transparent operation with level shifting

PI3VDP411LSAZBEX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the PI3VDP411LSAZBEX?

The operating voltage is 3V to 3.6V.

What package type is the PI3VDP411LSAZBEX available in?

It is available in a 48-TQFN (7x7mm) package.

What is the data rate supported by the PI3VDP411LSAZBEX?

The device supports up to 2.5Gbps per lane.

What color depth does the PI3VDP411LSAZBEX support?

It supports 12-bits of color depth per channel.

Does the PI3VDP411LSAZBEX have output squelch functionality?

Yes, it provides an output squelch function.
