| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,098 pcs
|
9098 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The PI3USB9281CXWEX from Diodes Incorporated is a specialized integrated circuit designed for USB 2.0 port protection and charger detection. It provides essential safeguards including over-voltage and over-current protection, with a VBUS input pin that can tolerate voltages up to 28V, making it suitable for USB 3.0 Power Delivery enabled ports.
This device supports various charger detection standards, including Battery Charging 1.2 (BC1.2) DCP, CDP, and SDP, as well as specific chargers like Apple, Samsung, YD/T, and CEA-936 car kits. It also features non-charging accessory detection and USB On-The-Go (OTG) detection.

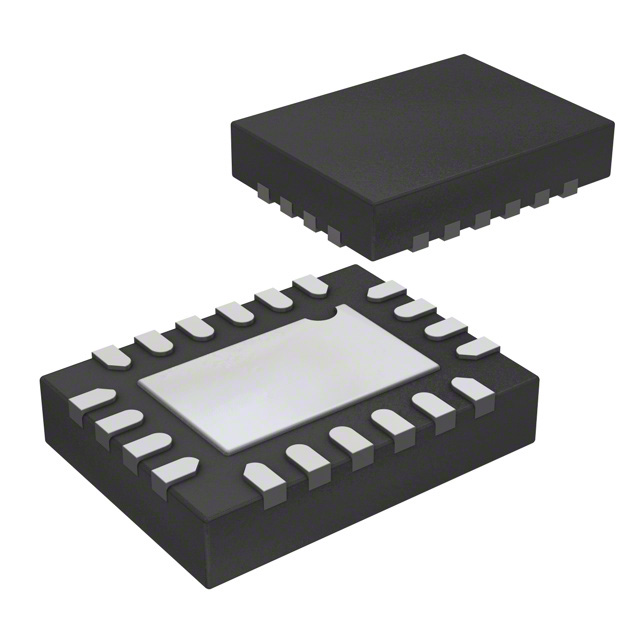

The PI3USB9281CXWEX operates over a wide temperature range of -40°C to +85°C and a supply voltage range of 3V to 5.5V. It is supplied in a compact 20-UQFN (3x4) package, suitable for surface mounting in portable and consumer applications such as smartphones, tablets, and digital cameras.
Key features include I2C programmability, integrated power FET, and compliance with RoHS 3, Lead-free, and Halogen-free standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 5.5V.
-40°C to 85°C (TA).
20-UQFN (3x4), surface mount.
Up to 28V.
Yes, it includes 1.7A over-current protection (OCP).
It can tolerate USB3.0-PD with VBUS = 20V.
