| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The Diodes Incorporated PI3USB42ZMEX is a specialized analog switch designed for USB 2.0 High-Speed applications, supporting data rates up to 480Mbps. This device facilitates signal switching with a bi-directional capability.
Key electrical specifications include an operating voltage range of 1.8V to 4.5V and a typical on-resistance of 4.0Ω, with a maximum of 5.5Ω. The switch operates efficiently with a switching frequency of 770MHz and features a 2:1 multiplexer configuration.

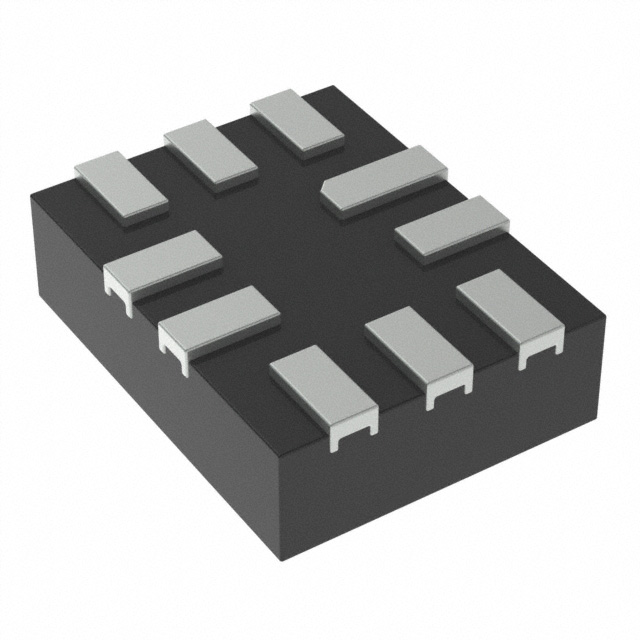

Packaged in a compact 10-UFQFN (1.8x1.4mm) format, the PI3USB42ZMEX is designed for surface mount installation. It operates within an ambient temperature range of -40°C to 85°C, making it suitable for various environmental conditions. The component is compliant with RoHS3 standards and is Halogen and Lead-free.
This USB switch is ideal for applications requiring flexible USB signal routing and management, ensuring reliable performance in compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the PI3USB42ZMEX is 1.8V to 4.5V.
The on-resistance of the PI3USB42ZMEX is a maximum of 5.5 Ohms.
The PI3USB42ZMEX is available in a 10-UFQFN package.
The operating temperature range for the PI3USB42ZMEX is -40°C to 85°C.
Yes, the PI3USB42ZMEX is RoHS3 compliant.
Yes, the PI3USB42ZMEX is Halogen-free.
