| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,675 pcs
|
6675 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| ESD Protection | |
| Features | |
| Halogen Free | |
| Input Voltage | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Power Consumption | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

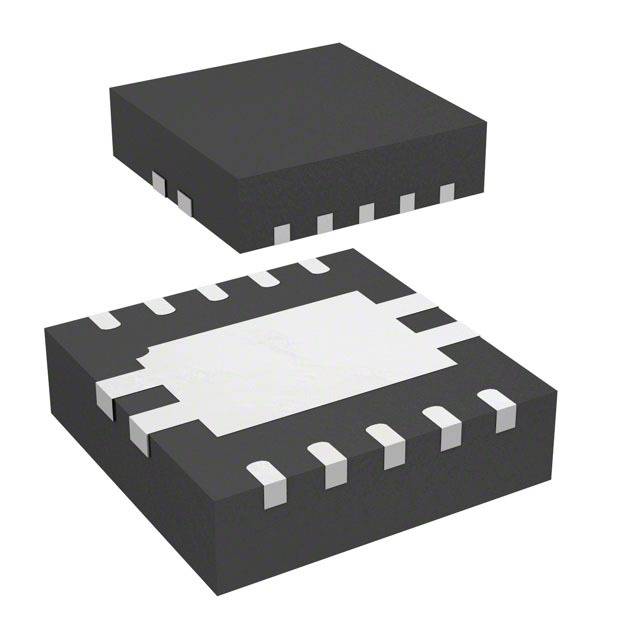

The PI3USB221ZEEX is an integrated circuit designed as a USB switch. It is housed in a 10-VFDFN exposed pad package suitable for surface mounting. The device operates over a voltage range of 2.3V to 3.6V, with typical VDD operation at 2.5V and 3.3V. It features a single channel multiplexer with a 2:1 ratio, making it suitable for switching applications in USB interfaces.
Electrical characteristics include an on-resistance maximum of 6 Ohms, a typical on-resistance of 0.2 Ohms, and an on-capacitance maximum of 6 pF. The device supports high bandwidth of 1.1 GHz and has a low-power mode current of 2 µA when OE is disabled. It provides ESD protection greater than 8 kV contact on the USB signal path per IEC61000-4-2.
Designed for use in USB data routing and switching, the device is suitable for applications requiring high-speed data transfer and reliable signal integrity. Its package and mounting type are optimized for surface mount assembly, ensuring ease of integration into various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates between 2.3V and 3.6V.
It comes in a 10-VFDFN exposed pad package.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
