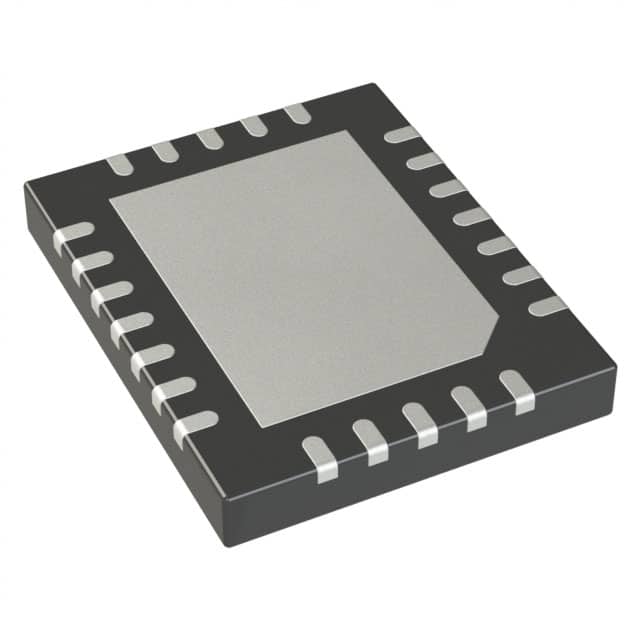

PI3PCIE3242AZLEX The Diodes Incorporated PI3PCIE3242AZLEX is a 4-channel, 2x2 differential exchange switch designed for PCI Express 3.0 applications. It operates bi-directionally at speeds up to 8.0 Gbps.
Mfr Part #:

PI3PCIE3242AZLEX

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated PI3PCIE3242AZLEX is a 4-channel, 2x2 differential exchange switch designed for PCI Express 3.0 applications. It operates bi-directionally at speeds up to 8.0 Gbps.
✓ Total Stock: 15,400 pcs
$ Price Range: $6.39

PI3PCIE3242AZLEX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
15,400 pcs
On Request
15400 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI3PCIE3242AZLEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Data Rate
Halogen Free
Interface
Lead Spacing
Mounting Type
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

PI3PCIE3242AZLEX Description

Short technical summary and product information.

The PI3PCIE3242AZLEX from Diodes Incorporated is a specialized interface IC featuring a 4-differential channel, 2x2 exchange switch. It is engineered to support PCI Express 3.0 performance, handling data rates up to 8.0 Gbps.



This bi-directional switch offers low bit-to-bit skew of 10ps and low crosstalk, with insertion loss of -1.1dB at 2.5GHz and -1.45dB at 4.0GHz. It operates within a VDD range of 3.3V ±10% and is designed for an industrial temperature range of -40°C to 85°C.



The device is available in a 30-contact TQFN package measuring 2.5 x 4.5mm. It is RoHS 3 compliant, lead-free, and halogen-free, making it suitable for environmentally conscious designs. The PI3PCIE3242AZLEX is ideal for applications requiring high-speed signal switching and routing within systems like notebooks and tablets.

PI3PCIE3242AZLEX Quick Information

Product Type: Specialized Interface IC
Series: PI3PCIE3242A
Canonical Name: PI3PCIE3242A 4-Channel 2x2 Exchange Switch
Subcategory: Exchange Switch

PI3PCIE3242AZLEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

PI3PCIE3242AZLEX Estimated Pricing

Qty Low High
1+ $6.39 $6.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI3PCIE3242AZLEX Features

  • 4-channel 2x2 differential exchange switch.
  • Supports PCI Express 3.0 at 8.0 Gbps.
  • Low bit-to-bit skew and crosstalk.
  • Low insertion loss performance.
  • Industrial temperature range: -40°C to 85°C.

PI3PCIE3242AZLEX Applications

  • High-speed signal routing.
  • PCI Express lane switching.
  • Notebook and tablet designs.
  • Data communication systems.

PI3PCIE3242AZLEX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the PI3PCIE3242AZLEX?

The operating voltage range is 3V to 3.6V, with a typical value of 3.3V.

What is the operating temperature range?

The device operates within an industrial temperature range of -40°C to 85°C.

What is the data rate supported by this PCIe switch?

This switch supports PCI Express 3.0 performance at 8.0 Gbps.

What package type is the PI3PCIE3242AZLEX supplied in?

It is supplied in a 30-contact TQFN package with dimensions of 2.5 x 4.5mm.

Is the PI3PCIE3242AZLEX RoHS compliant?

Yes, the PI3PCIE3242AZLEX is RoHS 3 compliant.

Is this a lead-free device?

Yes, this is a lead-free device.

Does the PI3PCIE3242AZLEX meet halogen-free requirements?

Yes, it is a halogen and antimony-free 'Green' device.
