PI3HDX412BDZBEX The Diodes Incorporated PI3HDX412BDZBEX is an active-drive switch IC for high-resolution video networks. It functions as an HDMI 1-to-2 splitter or demultiplexer.
Mfr Part #:

PI3HDX412BDZBEX

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated PI3HDX412BDZBEX is an active-drive switch IC for high-resolution video networks. It functions as an HDMI 1-to-2 splitter or demultiplexer.
✓ Total Stock: 9,386 pcs
$ Price Range: $6.39

PI3HDX412BDZBEX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
7,846 pcs
On Request
7846 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,540 pcs
On Request
1540 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI3HDX412BDZBEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Clock Frequency
Data Rate
Halogen Free
Lead Spacing
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

PI3HDX412BDZBEX Description

Short technical summary and product information.

The Diodes Incorporated PI3HDX412BDZBEX is an active-drive switch solution designed for high-resolution video networks utilizing HDMI/DVI standards and TMDS signal processing. This IC acts as a single TMDS channel to two TMDS channel splitter and demultiplexer with Hi-Z outputs, driving differential signals to multiple video display units.



Key features include support for up to 3.4Gbps TMDS serial link compliant with HDMI 1.4b requirements, enabling resolutions up to 4096 x 2160 pixels at 8-bit YCbCr 4:2:0 format. It operates with a 3.3V supply voltage and supports a clock frequency up to 340MHz. The device offers configurable TMDS output signals with port selection, pre-emphasis, voltage swing, and slew rate control via I2C mode programming. It also includes ESD protection on I/O pins.

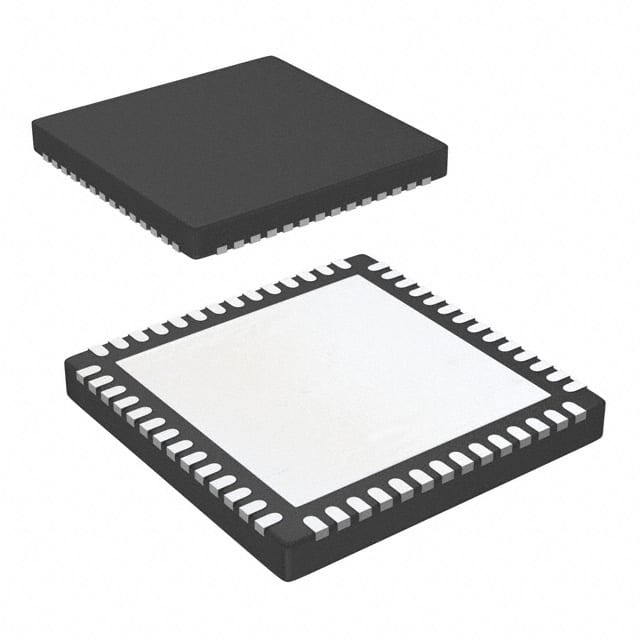

This device is suitable for applications such as Display Peripheral Boxes, Digital Signage Displays, and Video Processing. It is housed in a 56-contact TQFN (ZB56) package and operates within an industrial temperature range of -40°C to 85°C. The PI3HDX412BDZBEX is Totally Lead-Free & Fully RoHS Compliant and Halogen and Antimony Free.



Designed for the video driver's side, this switch ensures high bandwidth video stream transmission from PC graphics sources to end-display units. It provides enhanced and robust ESD/EOS protection required by many consumer video networks.

PI3HDX412BDZBEX Quick Information

Product Type: Interface IC
Canonical Name: HDMI 1-to-2 Splitter/Demux
Subcategory: Specialized

PI3HDX412BDZBEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

PI3HDX412BDZBEX Estimated Pricing

Qty Low High
1+ $6.39 $6.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI3HDX412BDZBEX Features

  • Supports up to 3.4Gbps TMDS serial link.
  • HDMI 1.4b compliant 1-to-2 splitter/demux.
  • Configurable TMDS output signal control.
  • Operates at 3.3V supply voltage.
  • Industrial temperature range: -40°C to 85°C.

PI3HDX412BDZBEX Applications

  • Used in display peripheral boxes.
  • Suitable for digital signage displays.
  • Applied in video processing devices.
  • Drives multiple video display units.

PI3HDX412BDZBEX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the data rate supported by the PI3HDX412BDZBEX?

The PI3HDX412BDZBEX supports up to 3.4Gbps TMDS serial link.

What is the clock frequency for this HDMI splitter IC?

The clock frequency supported is up to 340MHz.

What is the operating voltage for the PI3HDX412BDZBEX?

The operating voltage is 3.3V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the PI3HDX412BDZBEX supplied in?

It is supplied in a 56-contact TQFN (ZB56) package.

Is the PI3HDX412BDZBEX RoHS compliant?

Yes, the PI3HDX412BDZBEX is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
