Mfr Part #:

PI3EQX8908AZFEX

Mfr Name: Pericom Semiconductor Corporation

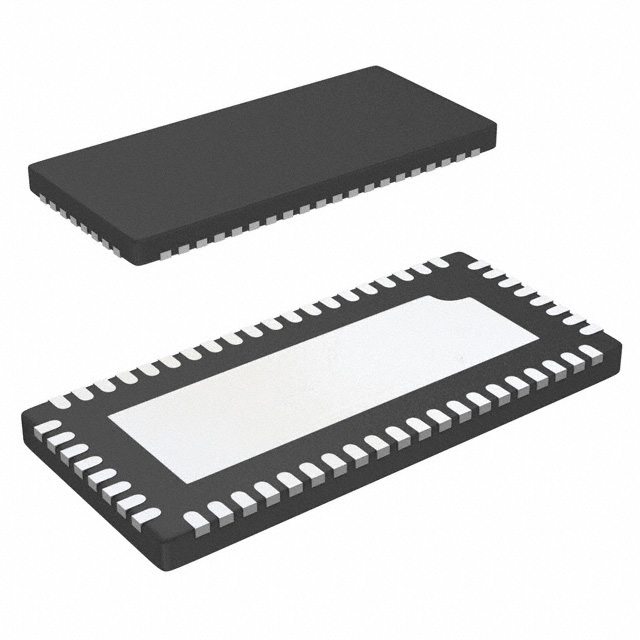

The Diodes Incorporated PI3EQX8908AZFEX is an 8-channel PCI Express ReDriver designed for high-speed signal integrity. It supports data rates up to 8Gbps and features programmable linear equalization.

✓ Total Stock: 20 pcs

$ Price Range: $2.27

PI3EQX8908AZFEX Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PI3EQX8908AZFEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Pericom Semiconductor Corporation
Data Rate	8 Gbps
Mounting Type	Surface Mount
Number of Channels	8
Storage Temperature	°C ~ °C
Supplier Device Package	54-TQFN (10x5.5)
Tape & Reel	No

View Similar Products (0)

PI3EQX8908AZFEX Description

Short technical summary and product information.

The PI3EQX8908AZFEX from Diodes Incorporated is an 8-channel PCI Express ReDriver that utilizes programmable linear equalization to optimize signal performance across various physical mediums by reducing inter-symbol interference. This device supports PCIe Gen 1, 2, and 3 protocols, extending signals across distant data pathways on a user's platform.

Key features include independent channel configuration for receiver equalization, output swing, and flat gain. It offers per-channel activity detectors and output termination detectors. The ReDriver can be programmed via pin strapping, I2C control, or loaded from an external EEPROM, eliminating the need for an external microprocessor or software driver when using EEPROM mode. The device offers a very linear transfer function, fully compliant with PCISIG Link Training signals.

This ReDriver is suitable for applications requiring enhanced signal integrity in PCIe interfaces. It is available in a 54-TQFN package and is designed for surface mounting. The operating supply voltage range is 3V to 3.6V, with an industrial temperature range of -40°C to 85°C.

PI3EQX8908AZFEX Quick Information

Product Type: ReDriver

Series: ReDriver™

Canonical Name: PI3EQX8908A 8-channel PCI Express ReDriver

Subcategory: Signal Buffers, Repeaters, Splitters

PI3EQX8908AZFEX Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PI3EQX8908AZFEX Estimated Pricing

Qty	Low	High
1+	$2.27	$2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI3EQX8908AZFEX Features

8-channel PCI Express ReDriver.
Supports 8Gbps data rates.
Programmable linear equalization.
Compliant with PCIe Gen 1/2/3.
Surface mount 54-TQFN package.

PI3EQX8908AZFEX Applications

Optimizes signal integrity.
Extends signal pathways.
Used in PCIe systems.
Reduces inter-symbol interference.

PI3EQX8908AZFEX FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum data rate supported by the PI3EQX8908AZFEX?

The PI3EQX8908AZFEX supports a maximum data rate of 8Gbps.

How many channels does the PI3EQX8908AZFEX have?

The PI3EQX8908AZFEX has 8 differential channels.

What is the operating supply voltage for the PI3EQX8908AZFEX?

The operating supply voltage is 3.3V, with a range of 3V to 3.6V.

What is the operating temperature range for this ReDriver?

The operating temperature range is -40°C to 85°C.

What type of signal conditioning does the PI3EQX8908AZFEX offer?

It offers input equalization and output de-emphasis for signal conditioning.

What PCIe protocols does the PI3EQX8908AZFEX support?

It supports PCIe Gen 1, Gen 2, and Gen 3 protocols.

What package type is the PI3EQX8908AZFEX available in?

It is available in a 54-TQFN (10x5.5) package for surface mounting.
