The Diodes Incorporated PI3EQX501IZAEX is a low-power, high-performance signal ReDriver specifically designed for the USB 3.0 protocol. This 1-channel device supports data rates up to 5Gbps, making it suitable for applications requiring robust signal integrity over various physical mediums.
Key features include programmable equalization and pin-configured output de-emphasis to optimize performance by reducing Inter-Symbol Interference. The ReDriver provides 100 Ohm differential CML I/Os, facilitating connections between ASICs, switches, cables, or other distant data pathways. It also incorporates input signal level detection, output squelch, and automatic receiver detection functions for enhanced signal management.

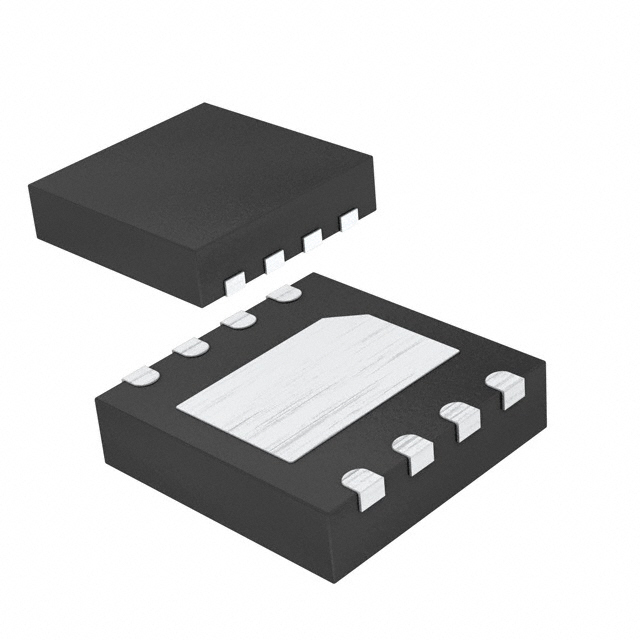

Designed for efficiency, the PI3EQX501IZAEX offers low power consumption of 165mW and an auto "Slumber" mode for adaptive power management. It operates from a single 3.3V supply. The component is housed in an 8-pin TDFN 2x2mm package, suitable for surface mounting.
Applications for this ReDriver include USB 3.0 cables, digital cameras, external storage devices, PC monitors, tablet PCs, and multi-function printers, where maintaining signal quality for USB 3.0 SuperSpeed standards is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.12 | $6.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate supported by the PI3EQX501IZAEX is 5Gbps.
The PI3EQX501IZAEX operates at a supply voltage of 3.3V.
The PI3EQX501IZAEX is available in an 8-TDFN (2x2mm) package, specifically an 8-WFDFN Exposed Pad.
It offers input equalization and output de-emphasis to optimize signal performance.
Yes, it is fully compliant with the USB 3.0 Super Speed standard.
The device has a low power consumption of 165mW and features an auto "Slumber" mode for adaptive power management.
