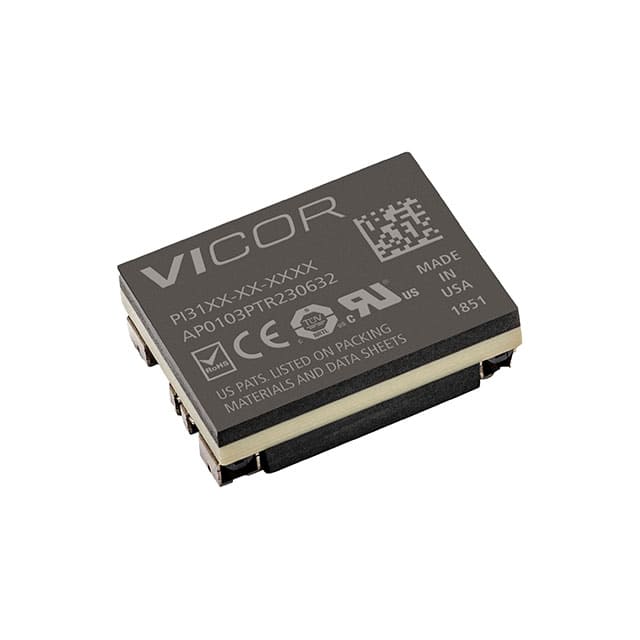

PI3106-01-HVIZ The PI3106-01-HVIZ is an isolated DC-DC converter module from Vicor. It delivers 12V output at 4.2A (50W) with 88.2% efficiency in a compact 8-SMD surface mount package.
Mfr Part #:

PI3106-01-HVIZ

Available from 1 distributors
Mfr Name: Vicor
Vicor
The PI3106-01-HVIZ is an isolated DC-DC converter module from Vicor. It delivers 12V output at 4.2A (50W) with 88.2% efficiency in a compact 8-SMD surface mount package.
✓ Total Stock: 30,000 pcs

PI3106-01-HVIZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI3106-01-HVIZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Topology
Type
Voltage
Width
View Similar Products (0)

PI3106-01-HVIZ Description

Short technical summary and product information.

The PI3106-01-HVIZ is an isolated DC-DC converter module from Vicor, part of the PI31xx series. It uses Zero-Voltage Switching (ZVS) topology to achieve high efficiency (88.2% typical) and a switching frequency of 900kHz. The module provides 2250VDC input-to-output isolation, making it suitable for applications requiring galvanic isolation.



Key electrical specifications include a single 12V output at 4.2A (50W total). The module features remote on/off control and built-in protection functions: overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and under-voltage lockout (UVLO). It is designed for ITE (commercial) applications and operates over a temperature range of -40°C to 125°C.



Mechanically, the PI3106-01-HVIZ is housed in an 8-SMD module with surface mount mounting. Its dimensions are 22.0mm x 16.5mm x 6.7mm, offering a compact footprint for space-constrained designs. The module is RoHS3 compliant.

PI3106-01-HVIZ Quick Information

Product Type: DC-DC Converter Module
Series: PI31xx
Canonical Name: Vicor PI3106-01-HVIZ Isolated DC-DC Converter Module
Subcategory: Single Output

PI3106-01-HVIZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 6
REACH Status: REACH Unaffected

PI3106-01-HVIZ Features

  • Zero-voltage switching (ZVS) topology for high efficiency.
  • 2250VDC input-to-output isolation.
  • Operating temperature range -40°C to 125°C.
  • Surface mount 8-SMD module design.
  • Includes remote on/off and protection features.

PI3106-01-HVIZ Applications

  • Used in ITE (commercial) power systems.
  • Suitable for telecom and networking equipment.
  • Ideal for space-constrained board-level power conversion.
  • Powers 12V rail applications in industrial designs.

PI3106-01-HVIZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the PI3106-01-HVIZ?

12V.

What is the package type?

8-SMD Module.

What is the operating temperature range?

-40°C to 125°C.

Is the PI3106-01-HVIZ RoHS compliant?

Yes, it is marked as RoHS3 compliant.

What is the efficiency of this converter?

88.2%.

What isolation voltage does it provide?

2250VDC.

What protection features are included?

Remote On/Off, OCP, OTP, OVP, UVLO.
