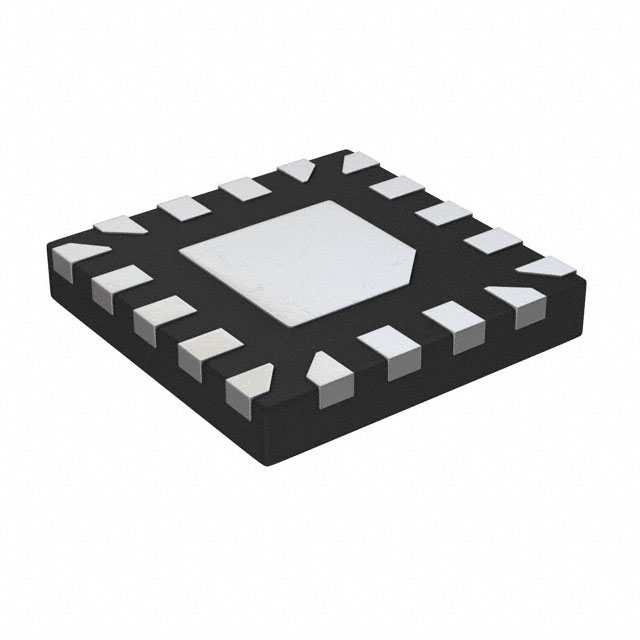

The PI2EQX862XUAEX from Diodes Incorporated is a cost-effective, low-power ReDriver designed for PCIe 3.0 and SATA 3.0 applications. This 1-lane device supports data rates up to 8Gbps, making it suitable for M.2 or SATAe connectors used with HDDs and SSDs.
It features programmable equalization to optimize performance by reducing Inter-Symbol Interference. The ReDriver provides two 8.0Gbps differential CML data I/Os and supports independent operation for each channel. Integrated equalization circuitry enhances signal integrity, and a low-level input signal detection with output squelch function is included for each channel.
The PI2EQX862XUAEX is designed for new processor chipsets with dual-protocol I/O pins, supporting both PCIe 3.0 8Gb/s and SATA 3.0 6.0Gb/s speeds. It is also an excellent choice for single-lane PCIe 3.0 applications requiring low power and a small package, such as docking station connectivity.
This ReDriver is available in an 18-pin TQFN 2x2mm package and operates on a single 1.2V supply. It includes features like Auto Slumber mode and Auto Sensing mode from SATAe/mSATA/M2 connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PI2EQX862XUAEX supports PCIe 3.0 and SATA 3.0 protocols.
The maximum data rate supported is 8Gbps.
The operating voltage is 1.2V.
It is available in an 18-pin TQFN 2x2mm package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
