The Diodes Incorporated PI2DPX1066XUAEX is a 4-to-4 channel linear redriver designed for high-speed data transmission. It supports configurations for USB3.2 Gen2, DP1.4/DP2.0 (UHBR10), and USB3.2 Gen2x2 operations, with data rates up to 10Gbps per channel.
This redriver features ultra-low latency (<300ps) and individual controls for CTLE gain, Flat Gain, and Output linearity, enhancing interoperability and data throughput. It integrates an AUX channel crossbar switch for sideband signals and supports Type-C connector flip and non-flip plug configurations. The device operates from a single 1.8V power supply and supports industrial temperature ranges from -40°C to +85°C.

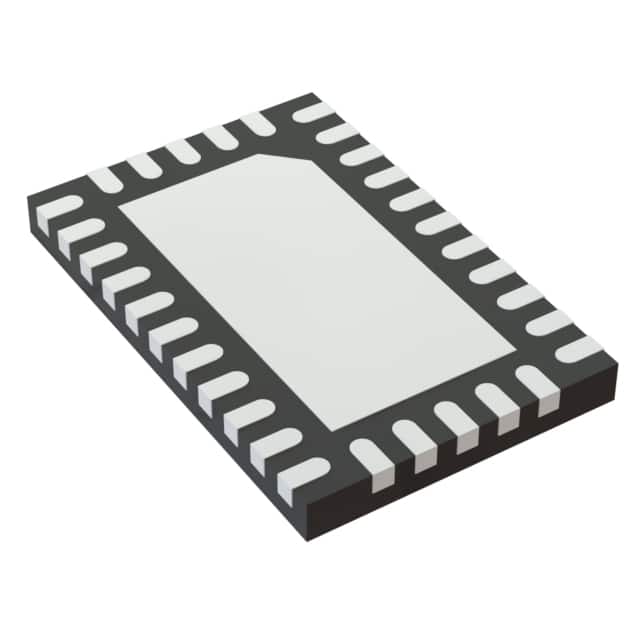

Packaged in a compact 32-pin X2QFN (2.85x4.5mm), the PI2DPX1066XUAEX is suitable for surface mount applications. It is RoHS3 compliant and designed for use in laptops, desktop PCs, gaming consoles, VR/AR goggles, and active cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.12 | $6.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the PI2DPX1066XUAEX is 1.8V +/-5%.
The PI2DPX1066XUAEX is available in a 32-pin X2QFN (2.85x4.5mm) package.
The operating temperature range for the PI2DPX1066XUAEX is -40°C to +85°C.
Yes, the PI2DPX1066XUAEX is RoHS3 compliant and totally lead-free.
The PI2DPX1066XUAEX supports a maximum data rate of 10Gbps per channel.
The PI2DPX1066XUAEX is designed for applications such as Laptop PCs, Desktop PCs, Gaming Consoles, VR/AR Goggles, and Active Cables, supporting USB Type-C and DisplayPort.
