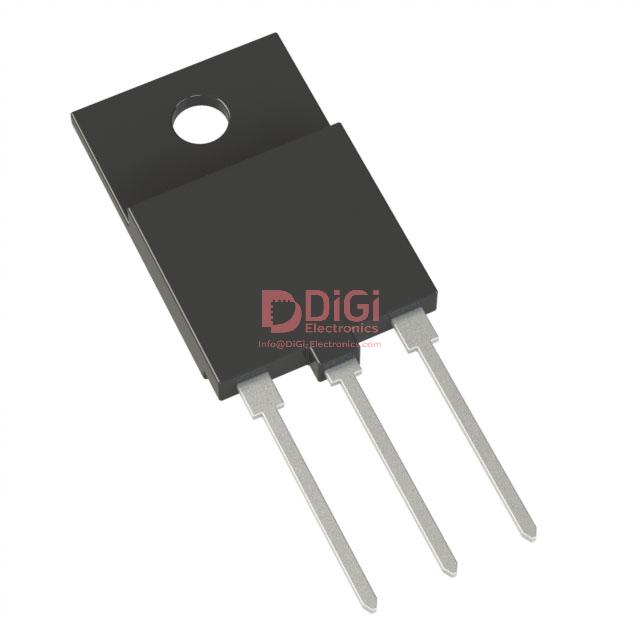

The NXP Semiconductors PHP3055E,127 is an N-channel standard level field-effect power transistor utilizing TrenchMOS™ technology. It is designed for applications such as DC to DC converters and switch mode power supplies.
Key electrical specifications include a drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 10.3A at 25°C case temperature. The maximum on-state resistance (Rds(on)) is 150mOhm at 5.5A and 10V gate-source voltage. The gate-source threshold voltage (Vgs(th)) is 4V at 1mA, and the maximum gate-source voltage (Vgs(max)) is ±20V.
This MOSFET operates over a wide temperature range from -55°C to 175°C (Tj). The total power dissipation is rated at 33W (Tc) at 25°C case temperature. The component is supplied in a TO-220-3 package with through-hole mounting.
Additional parameters include a gate charge (Qg) of 5.8nC at 10V and an input capacitance (Ciss) of 250pF at 25V. The datasheet also specifies avalanche energy and current ratings for non-repetitive conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is 60V.
The continuous drain current (Id) is 10.3A at 25°C case temperature.
The Rds On (Max) is 150mOhm at 5.5A drain current and 10V gate-source voltage.
The operating junction temperature range is -55°C to 175°C.
It is supplied in a TO-220-3 package with through-hole mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
