| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
864 pcs
|
864 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor (Typical @ 1 kHz) | |
| Dissipation Factor (Typical @ 10 kHz) | |
| Dissipation Factor (Typical @ 100 kHz) | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum dV/dt | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Rated Temperature | |
| Ratings | |
| Safety Class | |
| Standard Package Quantity | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

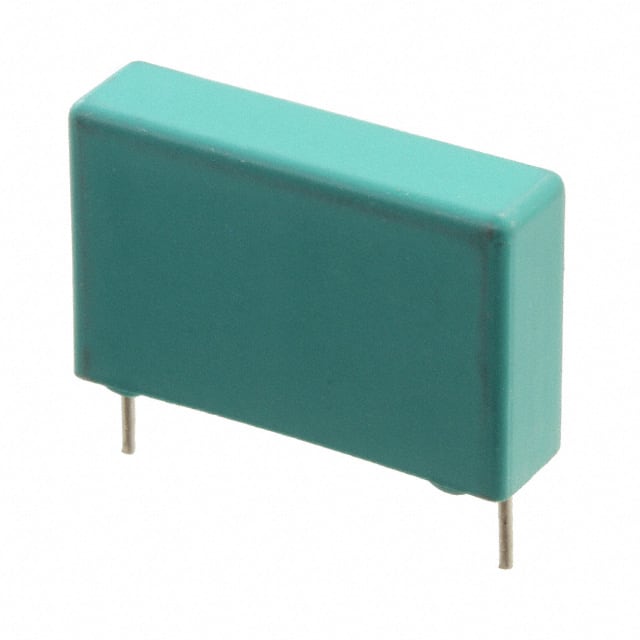

The KEMET PHE850ED5680MD17R06L2 is a metallized polypropylene film capacitor from the PHE850/F850 series, designed for EMI and RFI suppression in safety-critical applications. It offers a capacitance of 0.068 µF with a tolerance of ±20% and is rated for 1250 VDC and 300 VAC (Y2 safety class).
The capacitor features a through-hole mounting style with radial leads and a lead spacing of 22.5 mm. Its compact dimensions are 26 mm length, 7 mm width, and 16.5 mm height. The operating temperature range spans -55°C to 110°C, with a rated temperature of 110°C.
Electrical characteristics include a dissipation factor of 0.15% at 1 kHz, 0.2% at 10 kHz, and 0.6% at 100 kHz. Insulation resistance is 30 GΩ, and the maximum dV/dt is 100 V/µs. The part is packaged in trays with a standard quantity of 216 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $0.93 | $0.93 |
| 50+ | $0.74 | $0.74 |
| 216+ | $0.63 | $0.63 |
| 648+ | $0.57 | $0.57 |
| 1,080+ | $0.54 | $0.54 |
| 2,592+ | $0.51 | $0.51 |
| 5,184+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.068 µF.
1250 VDC and 300 VAC (Y2 safety class).
Metallized polypropylene (PP).
±20%.
-55°C to 110°C.
22.5 mm.
Y2.
