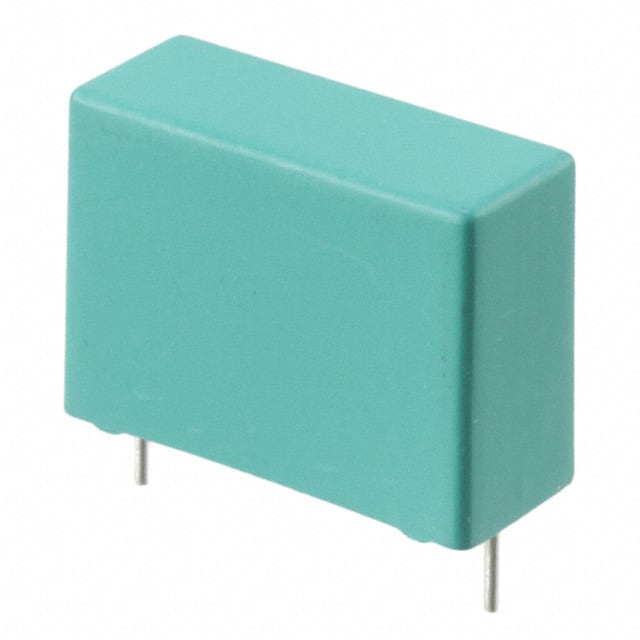

PHE850EB5330MB12R17 KEMET PHE850EB5330MB12R17 is a 0.033 µF metallized polypropylene film capacitor, rated for 300 VAC and 1250 VDC, Y2 class for EMI suppression. Through hole radial package with 15 mm lead spacing.
Mfr Part #:

PHE850EB5330MB12R17

Available from 3 distributors
Mfr Name: Yageo
Yageo
KEMET PHE850EB5330MB12R17 is a 0.033 µF metallized polypropylene film capacitor, rated for 300 VAC and 1250 VDC, Y2 class for EMI suppression. Through hole radial package with 15 mm lead spacing.
✓ Total Stock: 1,456 pcs
$ Price Range: $0.37 - $1.13

PHE850EB5330MB12R17 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
1,150 pcs
1150 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
300 pcs
300 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
6 pcs
6 pcs On Request 1 On Request On Request On Request On Request On Request

PHE850EB5330MB12R17 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Ratings
Storage Temperature
Termination
Tolerance
Voltage Rating
Width

PHE850EB5330MB12R17 Description

Short technical summary and product information.

The PHE850EB5330MB12R17 is a metallized polypropylene film capacitor from KEMET, part of the PHE850 series. It offers a capacitance of 0.033 µF with a tolerance of ±20%. The capacitor is rated for 300 VAC at 50/60 Hz and up to 1250 VDC for DC applications.



This component is designed for Y2 class interference suppression, making it suitable for line-to-earth EMI filtering in power electronic equipment. It features a self-extinguishing encapsulation meeting UL 94V-0 requirements.



The capacitor is available in a radial through-hole package with a lead spacing of 15.00 mm. Dimensions are 18.00 mm length, 8.00 mm width, and 15.00 mm height. Operating temperature ranges from -55°C to 110°C.



Note: This part is designated 'Not For New Design' by the manufacturer.

PHE850EB5330MB12R17 Quick Information

Product Type: Film Capacitor
Series: PHE850
Canonical Name: KEMET PHE850EB5330MB12R17, Metallized Polypropylene Film Capacitor, 0.033 µF, ±20%, 300 VAC/1250 VDC, Y2 Class
Subcategory: Y2 Class Film Capacitor

PHE850EB5330MB12R17 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PHE850EB5330MB12R17 Estimated Pricing

Qty Low High
1+ $1.13 $1.13
10+ $0.73 $0.73
50+ $0.58 $0.58
400+ $0.45 $0.45
800+ $0.43 $0.43
1,200+ $0.41 $0.41
2,800+ $0.39 $0.39
5,200+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

PHE850EB5330MB12R17 Features

  • 0.033 µF capacitance with ±20% tolerance.
  • Rated for 300 VAC and 1250 VDC operation.
  • Metallized polypropylene dielectric construction.
  • Y2 class for EMI suppression applications.
  • Through hole radial package with 15 mm lead spacing.

PHE850EB5330MB12R17 Applications

  • Line-to-earth EMI suppression in power supplies.
  • Y2 class interference filtering circuits.
  • Across-the-line applications requiring high voltage rating.

PHE850EB5330MB12R17 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the PHE850EB5330MB12R17?

0.033 µF

What are the voltage ratings?

300 VAC (50/60 Hz) and 1250 VDC (recommended maximum)

What is the dielectric material?

Metallized Polypropylene (PP)

What is the capacitance tolerance?

±20%

What is the package type and lead spacing?

Radial through hole with 15.00 mm lead spacing

What is the Y2 rating?

The capacitor is rated Y2 for EMI suppression in line-to-earth applications.

What is the operating temperature range?

-55°C to 110°C
