PHE850EB5100MB04R17 10000 pF (0.01 µF) metallized polypropylene film capacitor rated for 300 VAC Y2 applications. Through-hole radial package with 15.00 mm lead spacing.
Mfr Part #:

PHE850EB5100MB04R17

Available from 1 distributors
Mfr Name: Yageo
Yageo
10000 pF (0.01 µF) metallized polypropylene film capacitor rated for 300 VAC Y2 applications. Through-hole radial package with 15.00 mm lead spacing.
✓ Total Stock: 2,219 pcs
$ Price Range: $0.25 - $0.82

PHE850EB5100MB04R17 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
2,219 pcs
2219 pcs On Request 1 On Request On Request On Request On Request On Request

PHE850EB5100MB04R17 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Insulation Resistance
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Ratings
Termination
Termination Style
Tolerance
Voltage Rating
Width

PHE850EB5100MB04R17 Description

Short technical summary and product information.

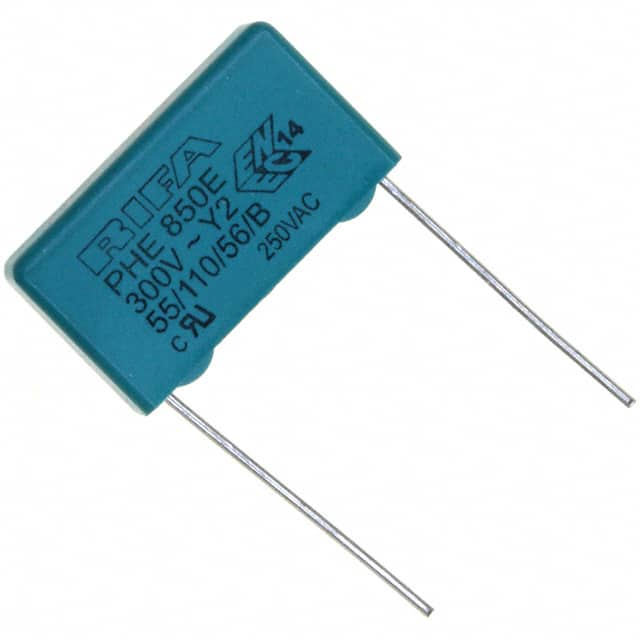

The KEMET PHE850EB5100MB04R17 is a 10000 pF (0.01 µF) metallized polypropylene film capacitor from the PHE850 series, designed for EMI/RFI suppression in Y2 safety applications. It is rated for 300 VAC at 50/60 Hz and can withstand up to 1250 VDC for DC applications. The capacitor features a self-healing dielectric construction and is encapsulated in a self-extinguishing material meeting UL 94V-0.



Electrical characteristics include a capacitance tolerance of ±20%, dissipation factor of 0.2% maximum at 1 kHz, and insulation resistance of at least 30000 MΩ. The operating temperature range is -55°C to +110°C, with a climatic category of 55/110/56/B. The component is packaged in a through-hole radial leaded format with 15.00 mm lead spacing and measures 18.00 mm x 5.50 mm x 10.50 mm.



According to the manufacturer's datasheet, this part is designated as 'Not for New Design', indicating it is an end-of-life product. It is suitable for use as an interference suppressor in line-to-earth (Y2) applications, but not for series connection with the mains. The capacitor is RoHS compliant per the datasheet, though compliance documentation has not been verified.

PHE850EB5100MB04R17 Quick Information

Product Type: Film Capacitor
Series: PHE850
Canonical Name: KEMET PHE850 Series 10000 pF 300 VAC Y2 Metallized Polypropylene Film Capacitor
Subcategory: EMI/RFI Suppression Capacitor

PHE850EB5100MB04R17 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PHE850EB5100MB04R17 Estimated Pricing

Qty Low High
1+ $0.82 $0.82
10+ $0.52 $0.52
50+ $0.40 $0.40
100+ $0.36 $0.36
800+ $0.29 $0.29
1,600+ $0.27 $0.27
3,200+ $0.26 $0.26
5,600+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

PHE850EB5100MB04R17 Features

  • 10000 pF capacitance value.
  • Rated for 300 VAC Y2 applications.
  • Metallized polypropylene dielectric.
  • Through-hole radial lead package.
  • Operating temperature range -55°C to +110°C.

PHE850EB5100MB04R17 Applications

  • Ideal for EMI/RFI suppression circuits.
  • Used in line-to-earth Y2 safety applications.
  • Suitable for power supply filtering.
  • Compatible with high-voltage DC applications up to 1250 V.

PHE850EB5100MB04R17 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the PHE850EB5100MB04R17?

10000 pF (0.01 µF).

What is the voltage rating for this capacitor?

300 VAC for Y2 applications and 1250 VDC for DC applications.

What is the tolerance of this capacitor?

±20%.

What is the dielectric material used?

Metallized polypropylene.

What is the package type and lead spacing?

Through-hole radial package with 15.00 mm lead spacing.

What is the operating temperature range?

-55°C to +110°C.

What is the dissipation factor at 1 kHz?

Maximum 0.2% at 1 kHz for capacitances ≤0.1 µF.
