| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,358 pcs
|
13358 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Height | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Ratings | |
| Self-Healing | |
| THB Grade | |
| Termination | |
| Test Voltage | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

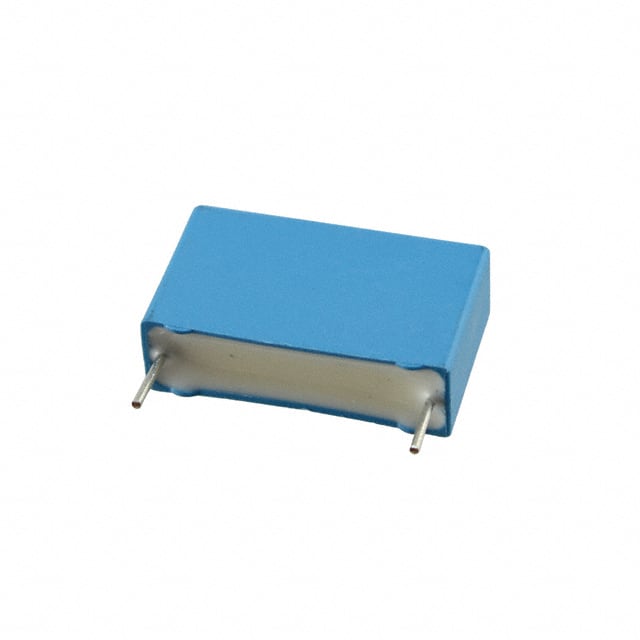

The KEMET PHE844RD6100MR06L2 is a metallized polypropylene film capacitor designed for EMI suppression in across-the-line applications requiring X1 safety classification. It features a capacitance of 0.1 µF with a tolerance of ±20% and is rated for 440 VAC (ENEC) and 480 VAC (UL, cUL) operation, with a DC voltage rating of 1000V. The capacitor is self-healing and meets the climatic category 40/105/56/B per IEC 60068-1.
The PHE844 series is constructed with metallized polypropylene film encapsulated in a self-extinguishing resin meeting UL 94 V-0 requirements. It offers THB Grade IA reliability under 40°C, 93% RH for 500 hours at 480 V. The component is housed in a radial package with a lead spacing of 22.5 mm and PC pin terminations, making it suitable for through-hole mounting on PCBs. Dimensions are 26 mm length, 8 mm width, and 16 mm height.
This capacitor is RoHS compliant with lead-free terminations and is 100% factory tested at 3000 VDC. It is ideal for use in power supplies, motor drives, and other equipment where interference suppression is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.65 | $1.65 |
| 10+ | $1.09 | $1.09 |
| 50+ | $0.87 | $0.87 |
| 186+ | $0.76 | $0.76 |
| 558+ | $0.69 | $0.69 |
| 1,116+ | $0.65 | $0.65 |
| 2,604+ | $0.62 | $0.62 |
| 5,022+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.1 µF.
440 VAC (ENEC), 480 VAC (UL, cUL), and 1000 VDC.
Metallized polypropylene (PP).
±20%.
Radial through-hole package with 22.5 mm lead spacing.
X1 per IEC 60384-14.
Yes, it has self-healing properties.
