| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
930 pcs
|
930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approvals | |
| Automotive Grade | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dimensions | |
| Dissipation Factor (1 kHz) | |
| Height | |
| Industrial Grade | |
| Insulation Resistance (Time Constant) | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Termination | |
| Test Voltage (Factory) | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width | |
| dv/dt |

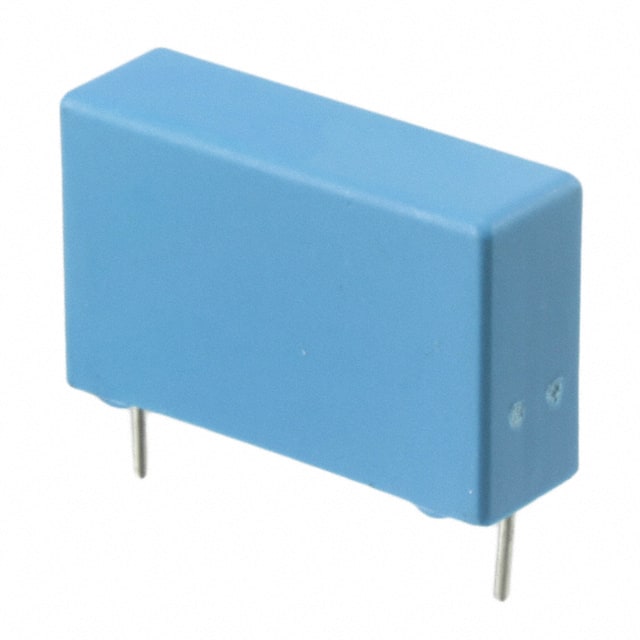

The KEMET PHE840MY6470MD14R06L2 is a metallized polypropylene film capacitor designed for EMI/RFI suppression in across-the-line X2 applications. It has a capacitance of 0.47 µF with ±20% tolerance. The capacitor is rated for 275 VAC (ENEC) and 280 VAC (UL/cUL) at 50/60 Hz, and a maximum DC voltage of 760 V. It operates over a temperature range of -55°C to +105°C and meets the climatic category 55/105/56/B. The dissipation factor is 0.1% at 1 kHz for capacitance between 0.1 µF and 1 µF. The insulation resistance time constant is ≥10,000 seconds for C > 0.33 µF. The capacitor is 100% factory tested at 2200 VDC. It has a dV/dt rating of 100 V/µs. The part is packaged in a radial through-hole configuration with 22.5 mm lead spacing and formed leads. The dimensions are 26.0 mm length, 8.0 mm width, and 16.0 mm height. It is RoHS compliant and lead-free, with approvals from ENEC, UL, and cUL. This product is marked as Not For New Design, so consider alternatives for new projects.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.65 | $1.65 |
| 10+ | $1.09 | $1.09 |
| 50+ | $0.87 | $0.87 |
| 186+ | $0.76 | $0.76 |
| 558+ | $0.69 | $0.69 |
| 1,116+ | $0.65 | $0.65 |
| 2,604+ | $0.62 | $0.62 |
| 5,022+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.47 µF.
275 VAC (ENEC) / 280 VAC (UL, cUL) and 760 VDC maximum.
Metallized Polypropylene (PP).
±20%.
Radial through-hole with PC pins, lead spacing 22.5 mm.
-55°C to +105°C.
Yes, RoHS compliant and lead-free.
