| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum dV/dt | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Quantity | |
| Packaging Type | |
| Rated Temperature | |
| Ratings | |
| Self Resonant Frequency | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Typical Component Weight | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width |

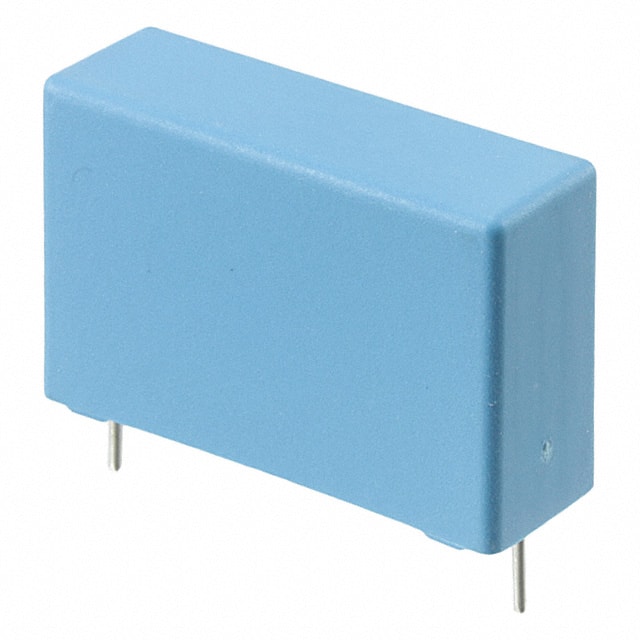

The KEMET PHE820EF6330MR06L2 is a metallized polyester film capacitor from the PHE820E/F720 series. It is designed as a safety capacitor with X2 class, suitable for EMI and RFI suppression applications. The capacitor offers a capacitance of 0.33 µF with a tolerance of ±20% and is rated for 300 VAC and 760 VDC.
Key electrical specifications include a dissipation factor of 1% at 1 kHz, insulation resistance of 30 GOhms, and a maximum dV/dt of 100 V/µs. The self-resonant frequency is 2.4 MHz. The operating temperature range is -40°C to 100°C.
The capacitor features a radial leaded package with PC pin terminals. Dimensions are 31.5 mm length, 10.5 mm width, and 20.5 mm height, with a lead spacing of 27.5 mm and lead length of 18.5 mm. The component weight is approximately 9.918 g. Packaging is provided in pizza box packaging with a quantity of 216 units per box.
This capacitor is RoHS compliant and REACH unaffected (unverified). It is noted as not for new designs; the replacement series is R46 X2 310VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.30 | $5.30 |
| 10+ | $3.73 | $3.73 |
| 50+ | $3.05 | $3.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.33 µF.
300 VAC (X2) and 760 VDC.
Metallized polyester.
±20%.
Radial through-hole package with 27.5 mm lead spacing.
2.4 MHz.
-40°C to 100°C.
