| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,380 pcs
|
3380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,156 pcs
|
2156 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Self Resonant Frequency | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

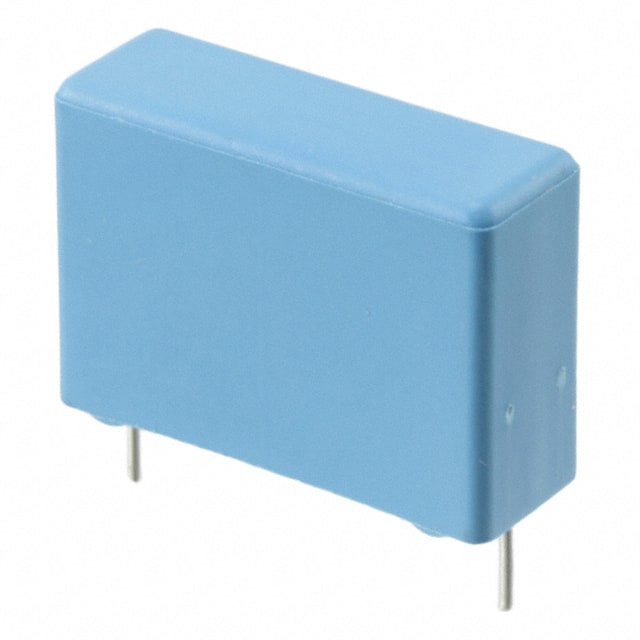

The KEMET PHE820ED6220MR06L2 is a metallized polyester film capacitor designed for EMI and RFI suppression applications. It offers a capacitance of 0.22 µF with a tolerance of ±20% and is rated for 300 VAC (X2 safety class) and 760 VDC. The capacitor features a dissipation factor of 1% at 1 kHz, insulation resistance of 30 GOhms, and a maximum dV/dt of 100 V/µs.
This component is part of the PHE820E/F720 series and is packaged in a radial through-hole configuration with tinned wire leads and 22.5 mm lead spacing. The dimensions are 26 mm length, 18.5 mm height, and 9 mm width. It operates over a temperature range of -40°C to 100°C with a rated temperature of 100°C.
The capacitor is suitable for across-the-line X2 safety applications and general EMI filtering in power supplies and electronic equipment. It is qualified to ENEC, UL, and cUL standards. Note that this part is not recommended for new designs; the replacement series is R46 X2 310VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
| 10+ | $1.66 | $1.66 |
| 50+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.22 µF.
300 VAC (X2 safety class) and 760 VDC.
Metallized Polyester.
±20%.
Radial through-hole package with 22.5 mm lead spacing.
-40°C to 100°C.
EMI and RFI suppression, X2 safety applications.
