| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
468 pcs
|
468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum dV/dt | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Quantity | |
| Packaging Type | |
| Qualifications | |
| Rated Temperature | |
| Ratings | |
| Self Resonant Frequency | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Weight | |
| Width |

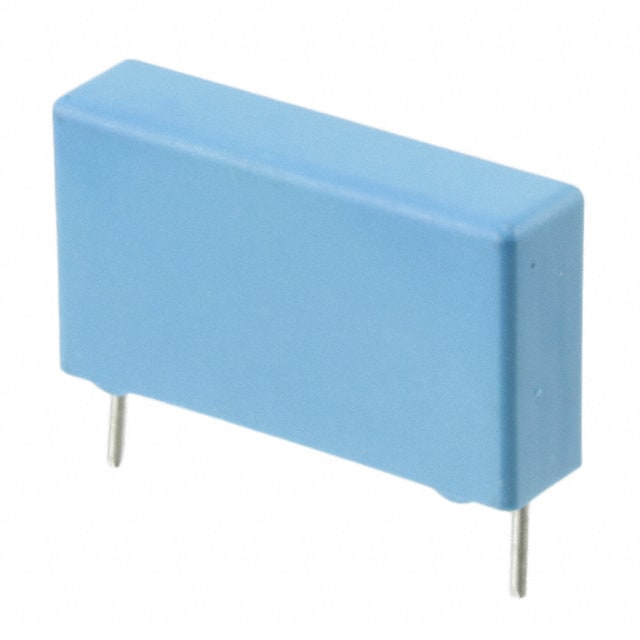

The KEMET PHE820ED6100MR06L2 is a metallized polyester film capacitor designed for EMI and RFI suppression applications. It is rated as a safety capacitor with X2 class, suitable for across-the-line use.
Key electrical specifications include a capacitance of 0.1 µF with ±20% tolerance, a voltage rating of 300 VAC (X2) and 760 VDC. The dissipation factor is 1% at 1 kHz, and the insulation resistance is 30 GOhms. The maximum dV/dt is 100 V/µs, and the self-resonant frequency is 4.5 MHz.
This capacitor is packaged in a radial through-hole configuration with dimensions 26 mm length, 6.5 mm width, and 14.5 mm height. Lead spacing is 22.5 mm, and terminations are PC pins. The operating temperature range is -40°C to 100°C.
The part is RoHS compliant and carries ENEC, UL, and cUL qualifications. It is supplied in bulk or pizza box packaging with quantities of 440 or 234 pieces. Note: The PHE820E series is obsolete; the replacement series is R46 X2 310VAC.
The capacitance is 0.1 µF.
It is rated for 300 VAC (X2) and 760 VDC.
The dielectric is metallized polyester.
The tolerance is ±20%.
It is a radial through-hole package with 22.5 mm lead spacing.
The operating temperature range is -40°C to 100°C.
Yes, it is RoHS compliant.
