| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Qualifications | |
| Rated Temperature | |
| Ratings | |
| Self Resonant Frequency | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage DC | |
| Voltage Rating | |
| Weight | |
| Width | |
| dv/dt |

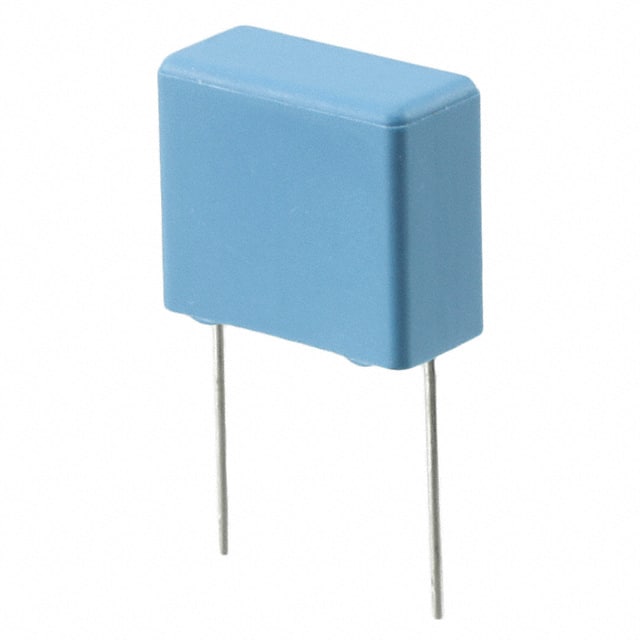

The KEMET PHE820EB6100KR17 is a metallized polyester film capacitor designed for EMI safety applications. It offers a capacitance of 0.1 µF with a tolerance of ±10% and is rated for 760 VDC and 300 VAC (X2 safety class). The capacitor features a dissipation factor of 1% at 1 kHz, insulation resistance of 30 GΩ, and a dV/dt rating of 100 V/µs. Its self-resonant frequency is 4.5 MHz.
This capacitor is part of the PHE820E/F720 series and is suitable for across-the-line and antenna coupling applications. It is qualified with ENEC, UL, and cUL certifications. The operating temperature range is -40°C to +100°C, with a rated temperature of 100°C.
The component is packaged in a radial leaded form factor with tinned wire leads. The lead spacing is 15.00 mm, and the lead length is 17.00 mm. The dimensions are 18.00 mm length, 16.00 mm height, and 8.50 mm thickness. The weight is 3.61 g. It is supplied in bulk packaging with a standard quantity of 400 pieces per bag.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.1 µF.
760 VDC and 300 VAC (X2 safety class).
Metallized polyester.
±10%.
Radial leads, through hole, with 15 mm lead spacing.
-40°C to +100°C.
ENEC, UL, and cUL.
