| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
836 pcs
|
836 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

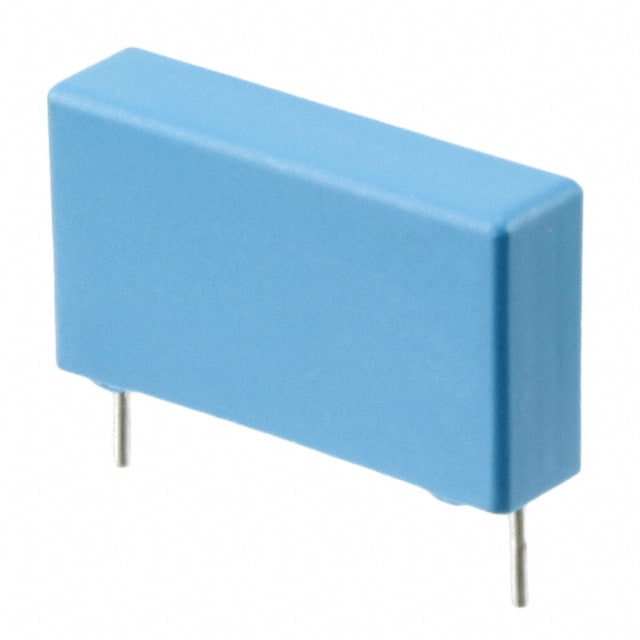

The KEMET PHE450SD4470JR06L2 is a double metallized polypropylene film capacitor from the PHE450 series. It offers a capacitance of 4700 pF with a tolerance of ±5% and a DC voltage rating of 2000 V (2 kV). The capacitor is designed for high frequency and switching applications, such as deflection circuits in televisions and protection circuits in switched mode power supplies (SMPS) and electronic ballasts.
The component is housed in a radial package with a lead spacing of 22.50 mm and PC pin terminations. Its dimensions are 26.00 mm in length, 6.50 mm in width, and 14.50 mm in height. The operating temperature range spans from -55°C to +105°C. The capacitor is encapsulated in a self-extinguishing resin box meeting UL 94 V-0 requirements.
This part is RoHS compliant and has lead-free terminations. Note that the PHE450 series has been replaced by the KEMET R76 series for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $1.64 | $1.64 |
| 50+ | $1.34 | $1.34 |
| 234+ | $1.15 | $1.15 |
| 702+ | $1.06 | $1.06 |
| 1,170+ | $1.03 | $1.03 |
| 2,574+ | $0.99 | $0.99 |
| 5,148+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 4700 pF.
The DC voltage rating is 2000 V (2 kV).
The tolerance is ±5%.
The dielectric is polypropylene (PP), metallized.
The package is radial with a lead spacing of 22.50 mm.
The operating temperature range is -55°C to +105°C.
Yes, it is RoHS compliant with lead-free terminations.
