| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,800 pcs
|
14800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

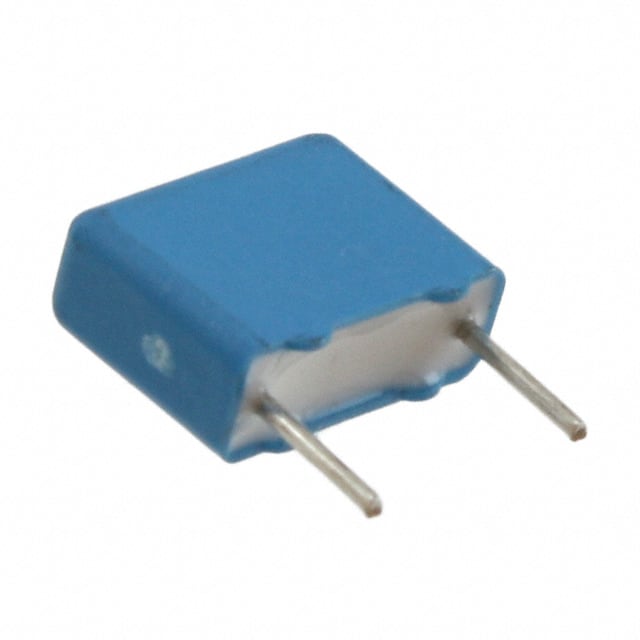

The PHE450MK4470JR05 is a metallized polypropylene film capacitor from KEMET, part of the PHE450 series. It has a capacitance of 4700 pF with a tolerance of ±5% and a voltage rating of 630 VDC. The capacitor is designed for high frequency and switching applications, such as deflection circuits in televisions and protection circuits in SMPS and electronic ballasts, as noted in the datasheet.
This capacitor is through-hole mounted in a radial package with a lead spacing of 7.50 mm. The body dimensions are 10.00 mm x 4.00 mm x 8.00 mm. It uses PC pin terminations. The operating temperature range is -55°C to 105°C. The dielectric material is polypropylene (PP) with metallized electrodes, encapsulated in self-extinguishing resin meeting UL 94 V-0 requirements.
Note: This series has been replaced by the R76 series. The part is RoHS compliant with lead-free terminations and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.48 | $0.48 |
| 50+ | $0.37 | $0.37 |
| 100+ | $0.33 | $0.33 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 3,000+ | $0.24 | $0.24 |
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4700 pF.
630 VDC.
Polypropylene (PP), metallized.
±5%.
Radial, through-hole, with PC pins.
-55°C to 105°C.
7.50 mm.
