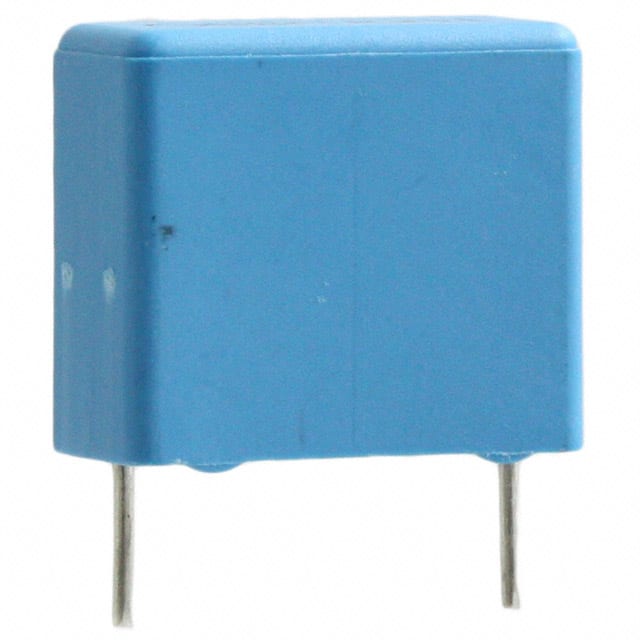

PHE450MB6100JR06 KEMET PHE450MB6100JR06 is a 0.1 µF polypropylene film capacitor rated at 630V DC with ±5% tolerance. It is designed for high frequency and switching applications, and features a radial through-hole mounting with PC pins.
Mfr Part #:

PHE450MB6100JR06

Available from 2 distributors
Mfr Name: Yageo
Yageo
KEMET PHE450MB6100JR06 is a 0.1 µF polypropylene film capacitor rated at 630V DC with ±5% tolerance. It is designed for high frequency and switching applications, and features a radial through-hole mounting with PC pins.
✓ Total Stock: 3,291 pcs
$ Price Range: $0.76 - $2.01

PHE450MB6100JR06 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
2,091 pcs
2091 pcs On Request 1 On Request On Request 23+ On Request On Request
Non-Authorised Inventory information
1,200 pcs
1200 pcs On Request 1 On Request On Request On Request On Request On Request

PHE450MB6100JR06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Dielectric Material
Halogen Free
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Termination
Termination Style
Tolerance
Voltage Rating
Width

PHE450MB6100JR06 Description

Short technical summary and product information.

The KEMET PHE450MB6100JR06 is a polypropylene film capacitor with double metallized electrodes. It offers a capacitance of 0.1 µF with a tolerance of ±5% and a DC voltage rating of 630V. The capacitor is encapsulated in a self-extinguishing resin box meeting UL 94 V-0 requirements. It is designed for through-hole mounting with a radial package and 15mm lead spacing.



This capacitor is suitable for high frequency and switching applications, such as deflection circuits in televisions and protection circuits in switched mode power supplies (SMPS) and electronic ballasts. It operates over a temperature range of -55°C to 105°C and is RoHS compliant with lead-free terminations.



Please note that the PHE450 series has been replaced by the R76 series and is not recommended for new designs.

PHE450MB6100JR06 Quick Information

Product Type: Film Capacitor
Series: PHE450
Canonical Name: KEMET PHE450 Series Polypropylene Film Capacitor, 0.1 µF, 630 VDC, ±5%, Radial
Subcategory: Polypropylene Film Capacitor

PHE450MB6100JR06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PHE450MB6100JR06 Estimated Pricing

Qty Low High
1+ $2.01 $2.01
10+ $1.36 $1.36
50+ $1.10 $1.10
100+ $1.02 $1.02
600+ $0.87 $0.87
1,200+ $0.83 $0.83
3,000+ $0.79 $0.79
5,400+ $0.76 $0.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

PHE450MB6100JR06 Features

  • 0.1 µF capacitance with ±5% tolerance.
  • Rated voltage of 630V DC.
  • Double metallized polypropylene film dielectric.
  • Radial through-hole package with 15mm lead spacing.
  • Operating temperature range -55°C to 105°C.

PHE450MB6100JR06 Applications

  • High frequency circuits with high current stress.
  • Protection circuits in switched mode power supplies.
  • Deflection circuits in televisions.
  • Electronic ballasts.

PHE450MB6100JR06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value?

0.1 µF.

What is the voltage rating?

630V DC.

What is the dielectric material?

Polypropylene (PP), Metallized.

What is the tolerance?

±5%.

What is the package type?

Radial through-hole with PC pins, lead spacing 15mm.

What is the operating temperature range?

-55°C to 105°C.

What are the typical applications?

High frequency and switching circuits.
