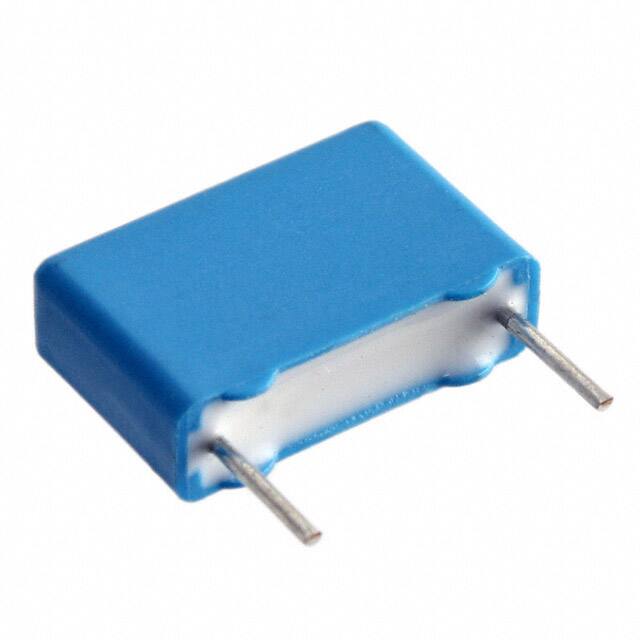

PHE450MA5100JR05 KEMET PHE450MA5100JR05 is a 10000pF ±5% 630VDC polypropylene film capacitor in a radial through-hole package.
Mfr Part #:

PHE450MA5100JR05

Available from 1 distributors
Mfr Name: Yageo
Yageo
KEMET PHE450MA5100JR05 is a 10000pF ±5% 630VDC polypropylene film capacitor in a radial through-hole package.
✓ Total Stock: 1,900 pcs
$ Price Range: $0.28 - $0.90

PHE450MA5100JR05 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
1,900 pcs
1900 pcs On Request 1 On Request On Request On Request On Request On Request

PHE450MA5100JR05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Termination
Termination Style
Tolerance
Voltage Rating
Width

PHE450MA5100JR05 Description

Short technical summary and product information.

The KEMET PHE450MA5100JR05 is a double metallized polypropylene film capacitor from the PHE450 series. It is designed for general purpose, pulse, and DC transient suppression applications. This capacitor is encapsulated in a self-extinguishing resin box meeting UL 94 V-0 requirements.



Key electrical specifications include a capacitance of 10000 pF with a tolerance of ±5% and a DC voltage rating of 630 V. The dielectric material is polypropylene with metallized electrodes, providing stable performance in high frequency and switching circuits.



Mechanically, the capacitor features a radial through-hole package with PC pin terminations. The lead spacing is 10.00 mm, and the dimensions are 13.00 mm length, 4.00 mm width, and 9.00 mm height. It operates over a temperature range of -55°C to 105°C and is classified under climatic category 55/105/56 per IEC 60068-1.



This part is RoHS compliant and lead-free. Please note that the PHE450 series is not recommended for new designs and has been replaced by the KEMET R76 series. Typical applications include high frequency deflection circuits, SMPS protection circuits, and electronic ballasts.

PHE450MA5100JR05 Quick Information

Product Type: Film Capacitor
Series: PHE450
Canonical Name: KEMET PHE450 Series 10000pF ±5% 630VDC Polypropylene Film Capacitor, Radial, Through Hole
Subcategory: Radial Leaded

PHE450MA5100JR05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PHE450MA5100JR05 Estimated Pricing

Qty Low High
1+ $0.90 $0.90
10+ $0.57 $0.57
50+ $0.44 $0.44
100+ $0.40 $0.40
500+ $0.33 $0.33
1,000+ $0.31 $0.31
3,000+ $0.29 $0.29
5,000+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

PHE450MA5100JR05 Features

  • 10000pF capacitance with ±5% tolerance.
  • Rated for 630V DC operation.
  • Polypropylene dielectric with metallized electrodes.
  • Radial through-hole package with 10mm lead spacing.
  • RoHS compliant and lead-free terminations.

PHE450MA5100JR05 Applications

  • Used in high frequency deflection circuits.
  • Suitable for SMPS protection circuits.
  • Ideal for electronic ballast applications.
  • Designed for pulse and DC transient suppression.

PHE450MA5100JR05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value?

10000 pF.

What is the voltage rating?

630 VDC.

What is the dielectric material?

Polypropylene (PP), metallized.

What is the capacitance tolerance?

±5%.

What is the package type?

Radial through-hole with PC pins.

What is the operating temperature range?

-55°C to 105°C.

Is this part RoHS compliant?

Yes, RoHS3 compliant.
