| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,975 pcs
|
1975 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

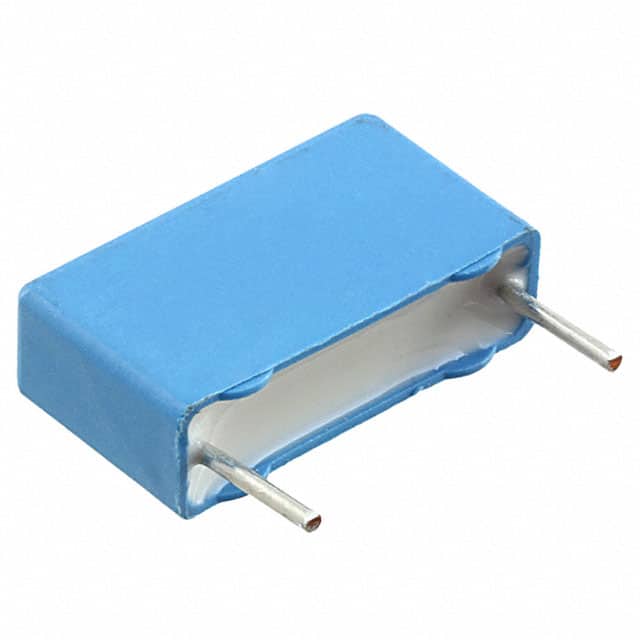

This Yageo PHE448SB3100JR06 is a film capacitor designed for general-purpose applications. It offers a capacitance of 100 pF with a tight tolerance of ±5% and a high voltage rating of 2000V (2kV).
The capacitor utilizes a polypropylene (PP) dielectric material and operates within a temperature range of -55°C to 105°C. It is designed for through-hole mounting and features PC pin terminations.
Key mechanical dimensions include a lead spacing of 15.00mm, a length of 18.00mm, a width of 5.50mm, and a height of 10.50mm. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 100 pF.
The voltage rating is 2000V (2kV).
The tolerance is ±5%.
It uses a Polypropylene (PP) dielectric material.
The operating temperature range is -55°C to 105°C.
It is a through-hole mounted component.
The dimensions are 18.00mm L x 5.50mm W x 10.50mm H with 15.00mm lead spacing.
