Mfr Part #:

PHDD-HS010G1ABONP-B078

Name: PHDD-HS010G1ABONP-B078
Brand: Superior Sensor Technology, Inc.
SKU: PHDD-HS010G1ABONP-B078

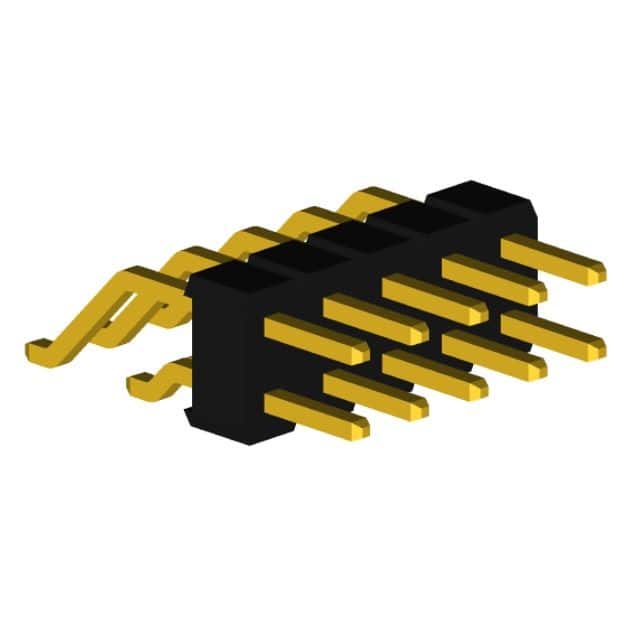

MALE HEADER HORIZONTAL SMD 10POS

Stock on Request

PHDD-HS010G1ABONP-B078 Description

Short technical summary and product information.

MALE HEADER HORIZONTAL SMD 10POS

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Superior Sensor Technology, Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.126" (3.20mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.157" (4.00mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 125°C
Overall Contact Length	0.042" (1.07mm)
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
