| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
565 pcs
|
565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

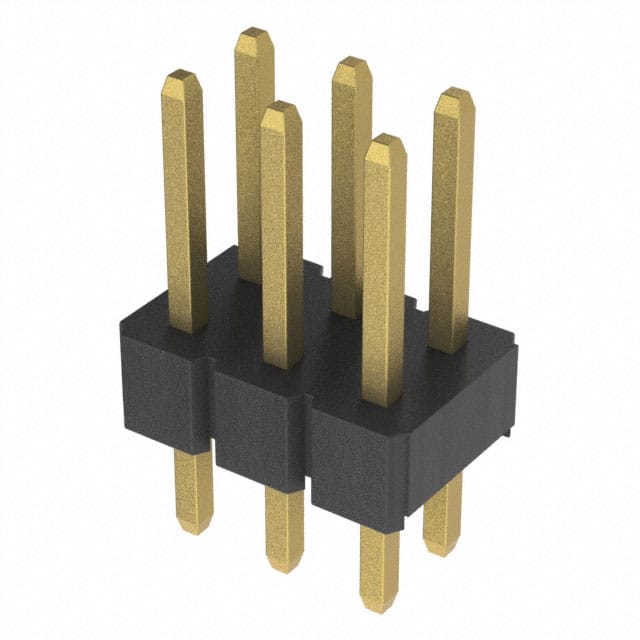

The Adam Technologies PH2-06-UA is a 6 position, 2-row unshrouded male pin header with a 2.54mm pitch and row spacing. Designed for board-to-board applications, this connector features a through hole mounting type with solder termination for secure PCB attachment.
Key specifications include a current rating of 3A and a voltage rating of 250VAC. The contacts are made of brass with a gold flash finish, housed in a black glass-filled PBT insulator with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C.
The unshrouded design and push-pull fastening type make it suitable for general purpose interconnection where a low-profile, reliable connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.09 | $0.09 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 5,000+ | $0.06 | $0.06 |
| 10,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PH2-06-UA has 6 positions, all loaded, in a 2-row configuration.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 3A and the voltage rating is 250VAC.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
The contacts are made of brass with a gold flash finish.
