| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
444 pcs
|
444 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

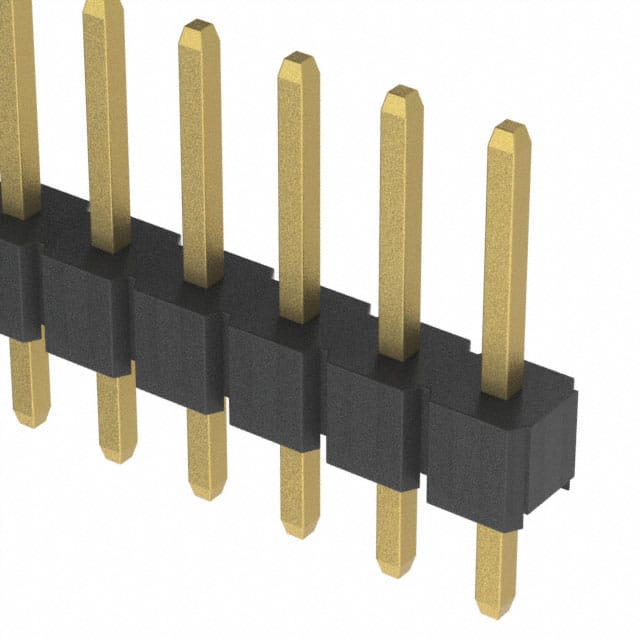

The PH1-06-UA from Adam Technologies Inc is a 6-position, single row, 2.54mm pitch through hole header connector. It is designed for board-to-board applications and features unshrouded male pins with gold-plated brass contacts.
The connector has a current rating of 3A and a voltage rating of 250VAC. It operates over a temperature range of -40°C to 105°C. The insulation is made of glass-filled PBT with a UL94 V-0 flammability rating, ensuring reliable performance in various environments.
The header uses through hole mounting with solder termination. The contact length is 6.00mm with an overall contact length of 11.54mm. The insulation height is 2.50mm. The square contact pins provide secure connections.
With its 2.54mm pitch and single row configuration, this header is suitable for compact board-to-board interconnects. The push-pull fastening type allows easy mating and unmating. The black insulation color is standard for many electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.07 | $0.07 |
| 100+ | $0.06 | $0.06 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PH1-06-UA has 6 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 250VAC.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts have a gold flash finish over brass.
