| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

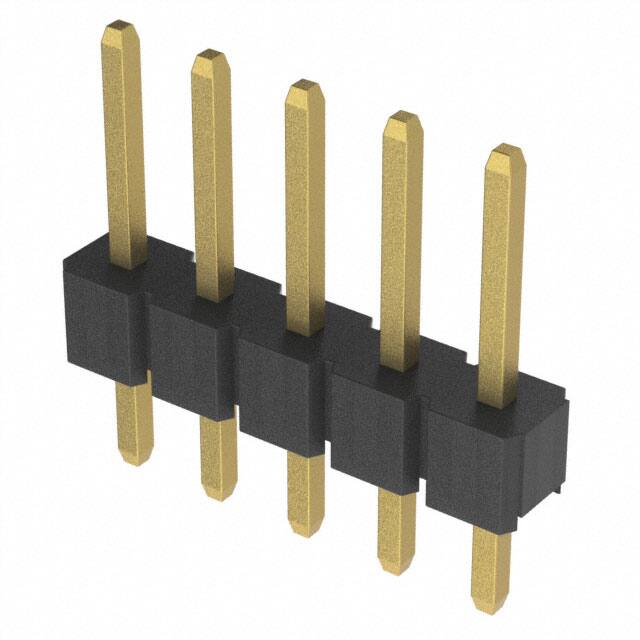

The PH1-05-UA is a 5-position single row male pin header from Adam Technologies Inc. It features a 2.54mm (0.100") pitch, making it compatible with standard prototyping boards and connectors. The header is unshrouded with a push-pull fastening type, suitable for board-to-board connections.
The contacts are made of brass with a gold flash finish, ensuring reliable electrical performance. The insulation is black glass-filled PBT, rated UL94 V-0 for flammability. The operating temperature range is -40°C to 105°C, allowing use in various environments.
The header is through-hole mounted with solder termination, providing a robust mechanical connection. It is rated for 3A current and 250VAC voltage, suitable for signal and low-power applications. The overall contact length is 0.454" (11.54mm) with an insulation height of 2.50mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.07 | $0.07 |
| 100+ | $0.06 | $0.06 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100").
3A.
250VAC.
Through hole.
-40°C to 105°C.
Gold flash.
