| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 1835 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance (Typical) | |
| Clamping Voltage (Typical) | |
| ESD Capability - Air Discharge (Typical) | |
| ESD Capability - Direct Discharge (Typical) | |
| ESD Pulse Withstand | |
| Halogen Free | |
| Leakage Current (Typical) | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Response Time | |
| Supplier Device Package | |
| Trigger Voltage (Typical) | |
| Type | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

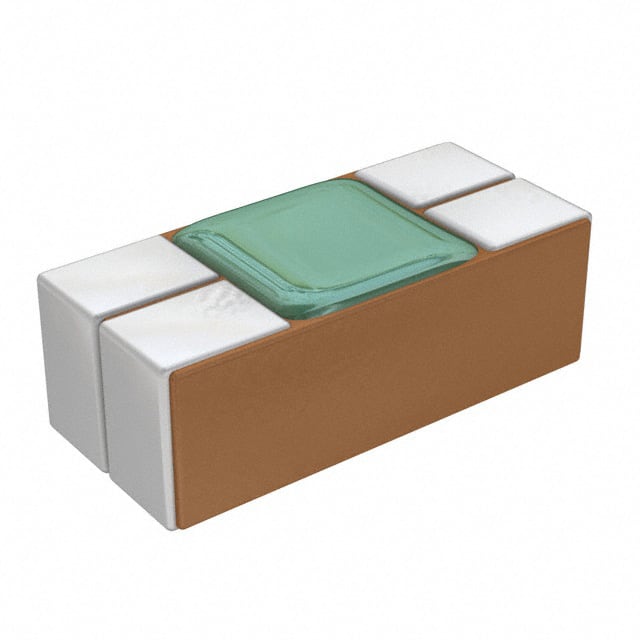

The PGB2010201KR is a PULSE-GUARD ESD Suppressor from Littelfuse, designed to protect sensitive electronic equipment from electrostatic discharge. It is a bidirectional Zener TVS diode with a reverse standoff voltage of 12V and typical clamping voltage of 55V under IEC 61000-4-2 8kV direct discharge. The trigger voltage is 400V typical.
Key electrical characteristics include ultra-low capacitance of 0.07 pF typical at 250 MHz, fast response time of less than 1 ns, and leakage current under 1 nA at 12V. It can withstand over 1000 ESD pulses and meets IEC 61000-4-2 levels of 8kV direct discharge and 10kV to 15kV air discharge.
The device is housed in a 0201 (0603 metric) surface mount package, compatible with pick-and-place processes. It is RoHS3 compliant, halogen free, and 100% lead free. Operating temperature range is -65°C to 125°C.
Common applications include HDTV hardware, laptop/desktop computers, network hardware, HDMI/USB 3.0 interfaces, computer peripherals, digital cameras, external storage, and set-top boxes.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.17 | $0.17 |
| 20,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12V
55V typical under IEC 61000-4-2 8kV direct discharge.
0.07 pF typical at 250 MHz.
8kV direct discharge and 10kV to 15kV air discharge per IEC 61000-4-2.
0201 (0603 metric) surface mount.
Yes, it is RoHS3 compliant, halogen free, and 100% lead free.
-65°C to 125°C.
