PGA2310UA/1KG4
Texas Instruments
The Texas Instruments PGA2310UA/1KG4 is a 2-channel audio volume control IC in a 16-SOIC package. It features an SPI interface and operates within a voltage range of ±4.5V to ±15.5V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Specifications | |
| Supplier Device Package | |
| Voltage | |
| Voltage Supply |
The Burr-Brown PGA2310UAG4 is an integrated circuit designed for stereo audio volume control. It features a wide operating voltage range of ±4.5V to ±15.5V, making it suitable for various audio systems.
The device supports an SPI interface for control and offers a gain range from 31.5dB down to -95.5dB. It is designed for surface mounting within a 16-SOIC package, measuring 0.295 inches (7.50mm) in width.
Applications for the PGA2310UAG4 include automotive audio systems, musical instruments, and professional audio equipment where accurate volume management is critical. The operating temperature range is -40°C to 85°C (TA).
This IC is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is ±4.5V to ±15.5V.
The operating temperature range is -40°C to 85°C (TA).

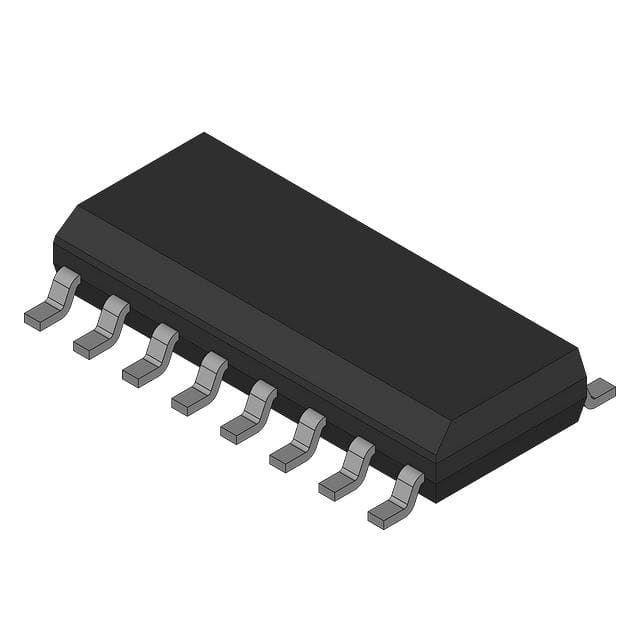

The PGA2310UAG4 is available in a 16-SOIC package.
The function of the PGA2310UAG4 is Volume Control.
The PGA2310UAG4 uses an SPI interface.
Typical applications include Automotive Audio, Musical Instruments, and Professional Audio.
The PGA2310UAG4 supports 2 channels.
