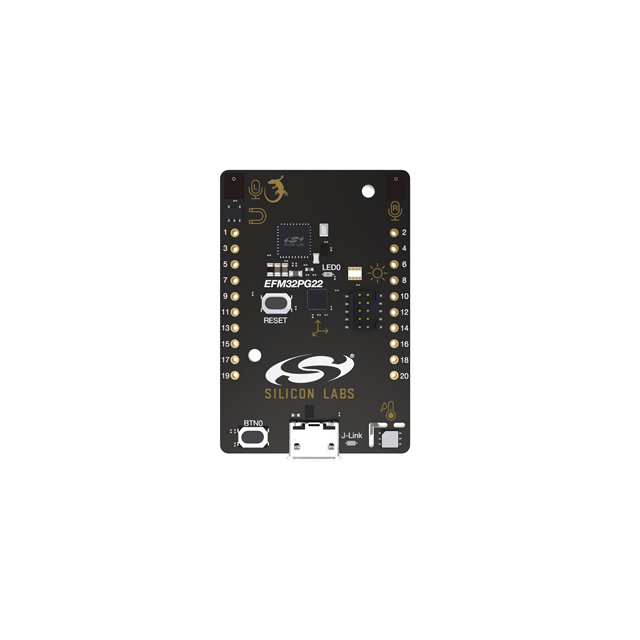

PG22-DK2503A PG22-DK2503A is an evaluation platform for the EFM32PG22 microcontroller based on 32-bit ARM Cortex-M33 core with 76.8 MHz clock, 512 kB flash, and 32 kB RAM.
Mfr Part #:

PG22-DK2503A

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
PG22-DK2503A is an evaluation platform for the EFM32PG22 microcontroller based on 32-bit ARM Cortex-M33 core with 76.8 MHz clock, 512 kB flash, and 32 kB RAM.
✓ Total Stock: 60 pcs
$ Price Range: $45.71

PG22-DK2503A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG22-DK2503A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Board Type
Contents
Core Processor
Mounting Type
Platform
Type
Utilized IC
View Similar Products (0)

PG22-DK2503A Description

Short technical summary and product information.

The PG22-DK2503A is a low-cost, small-form-factor development platform for the EFM32PG22 microcontroller from Silicon Labs. It is built around the EFM32PG22C200F512IM40-C device featuring a 32-bit ARM Cortex-M33 core operating at up to 76.8 MHz, with 512 kB flash memory and 32 kB RAM. The board includes a built-in SEGGER J-Link debugger for easy programming and debugging via USB Micro-B connector. On-board peripherals include a relative humidity and temperature sensor, ambient light sensor, Hall effect sensor, 6-axis inertial sensor, PDM stereo microphones, and 8 Mbit serial flash. All I/Os are routed to 20-pin 2.54 mm breakout pads for custom hardware expansion. Power can be supplied via USB or coin cell battery. The kit is supported by Simplicity Studio software and is ideal for evaluating energy-friendly embedded designs.

PG22-DK2503A Quick Information

Product Type: MCU Evaluation Board
Canonical Name: PG22-DK2503A Evaluation Board for EFM32PG22
Subcategory: MCU Evaluation Board

PG22-DK2503A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

PG22-DK2503A Estimated Pricing

Qty Low High
1+ $45.71 $45.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG22-DK2503A Features

  • 32-bit ARM Cortex-M33 core at 76.8 MHz.
  • 512 kB flash and 32 kB RAM memory.
  • On-board SEGGER J-Link debugger.
  • Multiple sensors for environmental sensing.
  • Breakout pads for easy expansion.

PG22-DK2503A Applications

  • Prototyping energy-friendly IoT devices.
  • Evaluating EFM32PG22 microcontroller capabilities.
  • Developing low-power sensor applications.
  • Testing wireless sensor nodes.

PG22-DK2503A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the PG22-DK2503A?

The board uses a 32-bit ARM Cortex-M33 core.

What is the maximum clock frequency?

76.8 MHz.

How much flash memory does the MCU have?

512 kB.

How much RAM is available?

32 kB.

Which microcontroller is utilized on this board?

EFM32PG22 (EFM32PG22C200F512IM40-C).

Is the PG22-DK2503A RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified.

What sensors are included on the board?

Relative humidity and temperature sensor, ambient light sensor, Hall effect sensor, 6-axis inertial sensor, and PDM stereo microphones.
