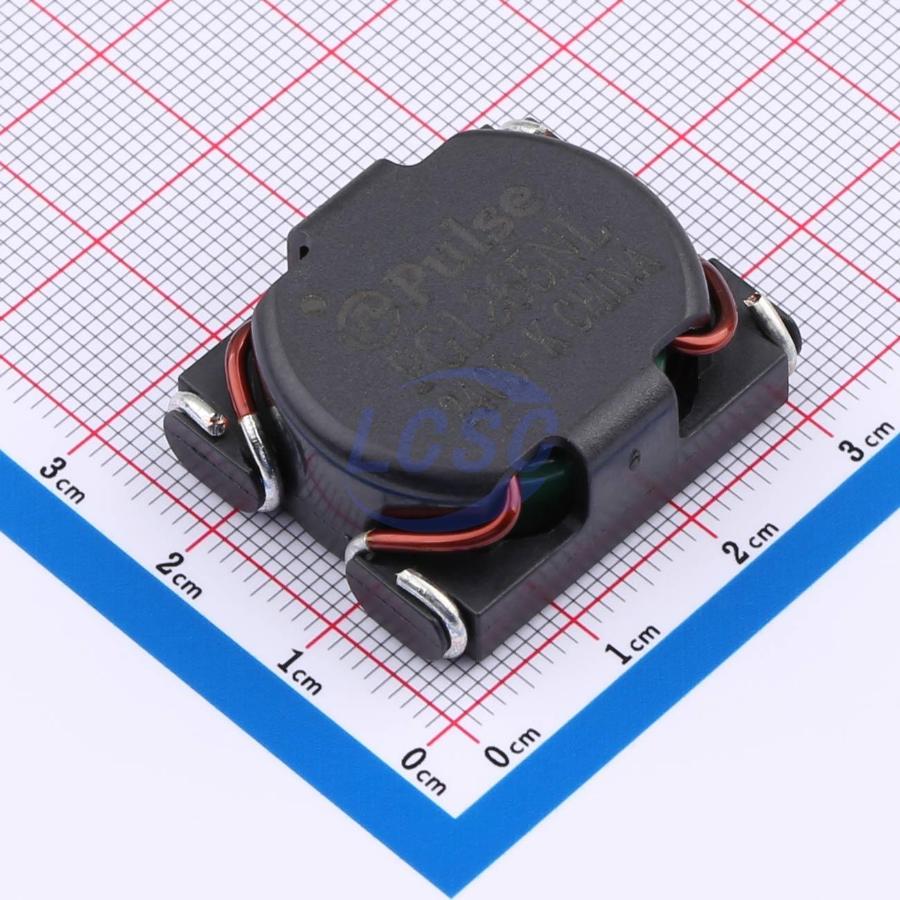

PG1265NLT The Pulse Electronics PG1265NLT is a common mode choke designed for noise suppression. It features a 20A current rating and a wide operating temperature range.
Mfr Part #:

PG1265NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PG1265NLT is a common mode choke designed for noise suppression. It features a 20A current rating and a wide operating temperature range.
✓ Total Stock: 15 pcs
$ Price Range: $0.81

PG1265NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG1265NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Height
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PG1265NLT Description

Short technical summary and product information.

The Pulse Electronics PG1265NLT is a common mode choke with a current rating of 20A and a maximum DC resistance of 4.1mOhm. This component is designed for surface mount applications and comes in a horizontal, 4 PC Pad package.



With an operating temperature range of -40°C to 130°C, the PG1265NLT is suitable for various environmental conditions. It has two lines for effective common mode noise filtering. The dimensions are 30.99mm in length, 25.40mm in width, and a maximum height of 12.70mm.



This common mode choke is ideal for applications requiring effective EMI/RFI filtering. Its robust construction and specifications make it a reliable choice for power line noise suppression in electronic devices.

PG1265NLT Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics PG1265NLT Common Mode Choke

PG1265NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG1265NLT Estimated Pricing

Qty Low High
1+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG1265NLT Features

  • 20A maximum current rating.
  • Low 4.1mOhm maximum DCR.
  • Surface mountable design.
  • Wide -40°C to 130°C operating temperature.
  • 2-line common mode choke.

PG1265NLT Applications

  • Effective common mode noise filtering.
  • EMI/RFI suppression in power lines.
  • Suitable for demanding environments.
  • Compact SMD package.

PG1265NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the PG1265NLT common mode choke?

The PG1265NLT has a maximum current rating of 20A.

What is the DC resistance (DCR) of the PG1265NLT?

The maximum DC resistance (DCR) for the PG1265NLT is 4.1mOhm.

What is the operating temperature range for the PG1265NLT?

The PG1265NLT operates within a temperature range of -40°C to 130°C.

How is the PG1265NLT mounted?

The PG1265NLT is designed for surface mount (SMD) applications.

What is the package type for the PG1265NLT?

The PG1265NLT comes in a horizontal, 4 PC Pad package.
