PG1265NL The PG1265NL is a surface-mount common mode choke rated for 20A, suitable for EMI filtering applications.
Mfr Part #:

PG1265NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The PG1265NL is a surface-mount common mode choke rated for 20A, suitable for EMI filtering applications.
✓ Total Stock: 6 pcs
$ Price Range: $0.99

PG1265NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG1265NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Height (Max)
Lead Spacing
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PG1265NL Description

Short technical summary and product information.

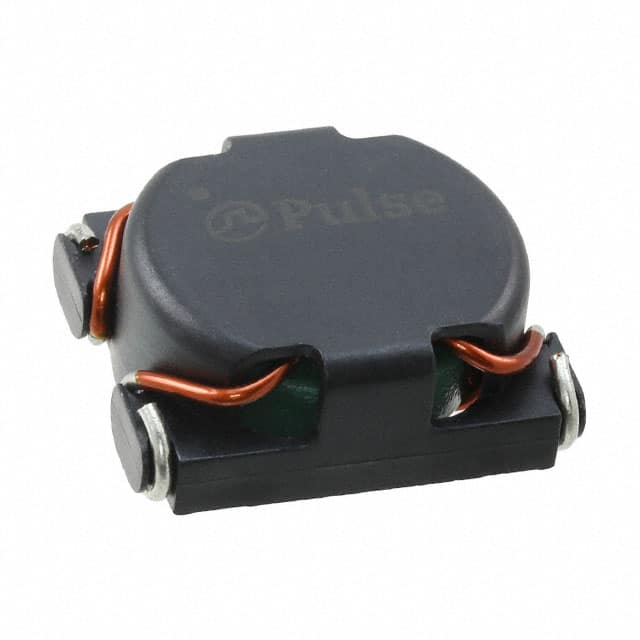

The PG1265NL is a common mode choke manufactured by Pulse Electronics. It features a maximum current rating of 20A and a maximum DC resistance of 4.1mOhm. The device operates within a temperature range of -40°C to 130°C and is designed for surface mounting with a horizontal, 4 PC pad package. Its dielectric strength is 1500Vrms, making it suitable for filtering high-frequency noise in electronic circuits. The component's compact size measures approximately 30.99mm in length, 25.40mm in width, and 12.70mm in height. It is used in applications requiring EMI suppression in power supplies, communication equipment, and other electronic systems.

PG1265NL Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics PG1265NL Common Mode Choke

PG1265NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG1265NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG1265NL Features

  • Rated for 20A maximum current
  • Maximum DC resistance of 4.1mOhm
  • Surface mount with 4 PC pad package
  • Operates from -40°C to 130°C
  • Dielectric strength of 1500Vrms

PG1265NL Applications

  • Used in power supply noise filtering applications.
  • Suitable for telecommunications and networking systems.
  • Ideal for EMI suppression in industrial electronics.
  • Applied in automotive electronic filtering circuits.

PG1265NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the PG1265NL?

The PG1265NL has a maximum current rating of 20A.

What is the maximum DC resistance of the PG1265NL?

The maximum DC resistance is 4.1mOhm.

What is the operating temperature range of the PG1265NL?

-40°C to 130°C.

What package type does the PG1265NL use?

It uses a horizontal, 4 PC pad surface-mount package.

What is the dielectric strength of the PG1265NL?

The dielectric strength is 1500Vrms.
