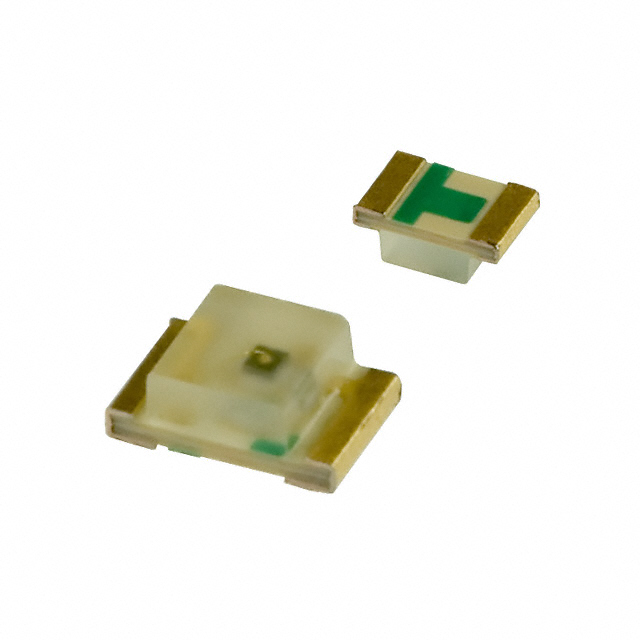

PG1112HTR The Stanley PG1112HTR is a green LED with a diffused lens, designed for surface mounting. It features a peak wavelength of 560nm and a typical forward voltage of 2.1V.
Mfr Part #:

PG1112HTR

Available from 1 distributors
Mfr Name: Stanley
Stanley
The Stanley PG1112HTR is a green LED with a diffused lens, designed for surface mounting. It features a peak wavelength of 560nm and a typical forward voltage of 2.1V.
✓ Total Stock: 26 pcs
$ Price Range: $1.16

PG1112HTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG1112HTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Duration
Forward Voltage
Height
Lens Color
Lens Transparency
Mounting Type
SVHC Present
Viewing Angle
View Similar Products (0)

PG1112HTR Description

Short technical summary and product information.

This Stanley PG1112HTR is a green LED indicator designed for discrete applications. It comes in a compact 0805 (2012 Metric) surface mount package with dimensions of 2.00mm L x 1.25mm W and a height of 0.90mm. The LED features a diffused lens for wide light distribution and a white lens color.



Key electrical specifications include a dominant wavelength of 567nm and a peak wavelength of 560nm. The typical forward voltage is 2.1V, and it operates with a test current of 20mA, producing a typical luminous intensity of 6.4mcd. The viewing angle is broad, measuring 159° horizontally and 156° vertically.



The component is supplied in Tape & Reel packaging. It is RoHS 3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (unlimited). The standard manufacturing time is 11 weeks.

PG1112HTR Quick Information

Product Type: LED
Series: 1112H
Canonical Name: Stanley PG1112HTR Green LED
Subcategory: LED

PG1112HTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG1112HTR Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG1112HTR Features

  • Green LED with diffused lens.
  • 560nm peak wavelength.
  • 2.1V typical forward voltage.
  • 0805 surface mount package.
  • RoHS 3 compliant.

PG1112HTR Applications

  • Ideal for status indication.
  • Suitable for general lighting.
  • Used in control panels.
  • Component for electronic devices.

PG1112HTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the peak wavelength of the Stanley PG1112HTR LED?

The peak wavelength is 560nm.

What is the typical forward voltage for the PG1112HTR LED?

The typical forward voltage is 2.1V.

What is the luminous intensity of the Stanley PG1112HTR LED?

The luminous intensity is 6.4mcd at 20mA test current.

What package type is the PG1112HTR LED supplied in?

The LED is supplied in an 0805 (2012 Metric) package.

What is the RoHS status of the Stanley PG1112HTR?

The RoHS status is Lead free / RoHS Compliant.

What is the Moisture Sensitivity Level (MSL) for this LED?

The Moisture Sensitivity Level is 4 (72 Hours).
