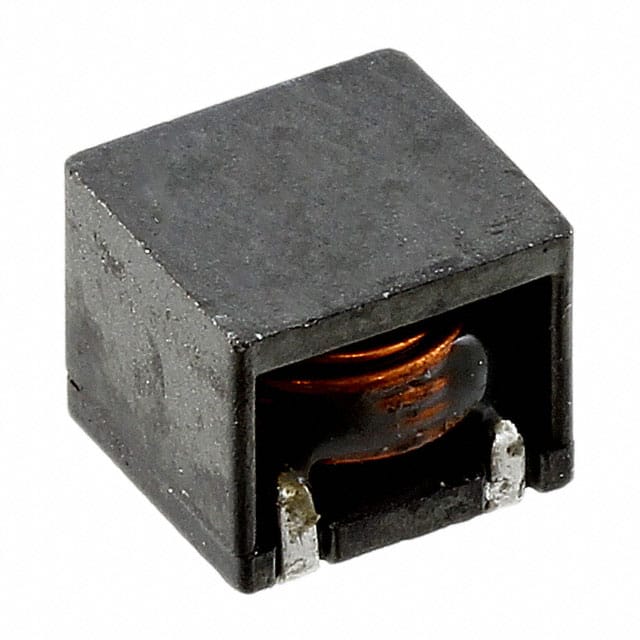

PG0871.102NLT The Pulse Electronics PG0871.102NLT is a shielded, wirewound fixed inductor with 1 µH inductance and a 17.5A current rating. It features a low 2.3 mOhm DCR and surface mount packaging.
Mfr Part #:

PG0871.102NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PG0871.102NLT is a shielded, wirewound fixed inductor with 1 µH inductance and a 17.5A current rating. It features a low 2.3 mOhm DCR and surface mount packaging.
✓ Total Stock: 44 pcs
$ Price Range: $0.52

PG0871.102NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG0871.102NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PG0871.102NLT Description

Short technical summary and product information.

This Pulse Electronics PG0871.102NLT is a wirewound, shielded fixed inductor designed for surface mount applications. It offers an inductance value of 1 µH with a tolerance of ±20% and a significant current rating of 17.5A.



The inductor has a low DC resistance (DCR) of 2.3 mOhm, contributing to efficient operation. Its operating temperature range is from -40°C to 130°C, making it suitable for various environmental conditions. The dimensions are 7.60mm in length, 7.40mm in width, and 6.40mm in height.



Key electrical characteristics include its shielded construction for reduced electromagnetic interference and its wirewound type, which is common for power applications requiring higher current handling capabilities. The surface mount package facilitates automated assembly processes.

PG0871.102NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PG0871.102NLT Wirewound Shielded Fixed Inductor
Subcategory: Wirewound

PG0871.102NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG0871.102NLT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG0871.102NLT Features

  • Shielded wirewound fixed inductor.
  • 1 µH inductance with ±20% tolerance.
  • High 17.5A current rating.
  • Low 2.3 mOhm DCR.
  • Surface mountable design.

PG0871.102NLT Applications

  • Suitable for power supply circuits.
  • Used in DC-DC converters.
  • Ideal for filtering applications.
  • Component for signal processing.

PG0871.102NLT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PG0871.102NLT?

The inductance is 1 µH.

What is the current rating for this Pulse Electronics inductor?

The current rating is 17.5 A.

What is the DC resistance (DCR) of the PG0871.102NLT?

The DC resistance is 2.3 mOhm.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 130°C.

What type of inductor is the PG0871.102NLT?

It is a wirewound, shielded fixed inductor.

What are the dimensions of the PG0871.102NLT?

The dimensions are 7.60mm in length, 7.40mm in width, and 6.40mm in height.
