| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 0839+ | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Inductance Frequency - Test | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

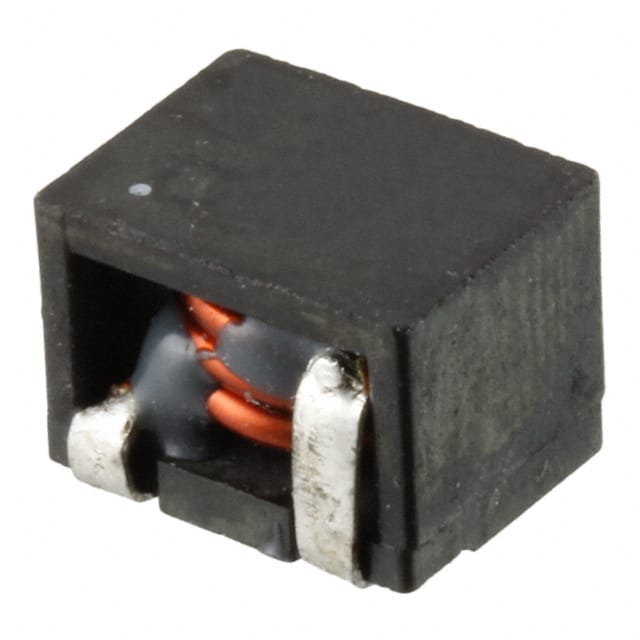

The Pulse Electronics PG0702.102NLT is a high-current shielded wirewound inductor designed for demanding applications. It offers an inductance value of 1µH with a tolerance of ±20% and can handle a significant current rating of 26A, with a saturation current also rated at 26A. The DC resistance is a low 1.76mOhm, ensuring efficient operation.
This inductor is constructed with a shielded design, minimizing electromagnetic interference. It is suitable for operation across a wide temperature range of -40°C to 130°C. The component is intended for surface mounting, making it compatible with modern PCB assembly processes. The package is classified as nonstandard, and it is supplied in Cut Tape (CT) & Digi-Reel® packaging.
Key electrical characteristics include an inductance tested at 100 kHz. The dimensions are approximately 10.80mm in length and 9.20mm in width, with a height of 8.00mm. This part is ideal for power supply circuits, filtering, and other applications requiring robust inductive components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PG0702.102NLT is 1 µH.
The current rating for the PG0702.102NLT is 26 A.
The DC resistance of the PG0702.102NLT is 1.76mOhm.
The PG0702.102NLT requires surface mounting.
The operating temperature range for the PG0702.102NLT is -40°C to 130°C.
The package type for the PG0702.102NLT is Nonstandard.
