| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Heating Current | |
| Height | |
| Inductance | |
| Inductance Test Frequency | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Tolerance | |
| Type | |
| Width | |
| inductance (Typical @ Irated) |

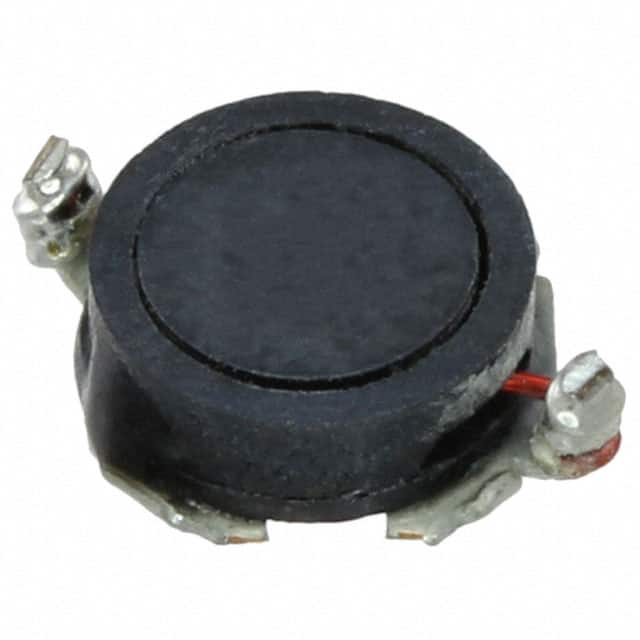

The Pulse Electronics PG0085.332NL is a shielded wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 3.3µH with a tolerance of ±20% and a rated current of 1A. The DC resistance (DCR) is a maximum of 77mOhm.
This inductor operates within a temperature range of -40°C to 130°C and has a self-resonant frequency of 40MHz. Its dimensions are 4.30mm x 4.30mm with a maximum height of 1.80mm, making it suitable for compact designs. The "NL" suffix indicates an RoHS-compliant part.
Key electrical specifications include a saturation current of 1A and a heating current of 2.00A. The inductance is tested at 100kHz with 0.1VAC. This series is part of the PG0085NL family of SMT power inductors.
Applications for this component include power supply circuits, DC-DC converters, and filtering in various electronic devices where reliable inductance and current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PG0085.332NL is 3.3µH ±20% at 0 ADC.
The current rating for the PG0085.332NL is 1A.
The DC resistance (DCR) of the PG0085.332NL is a maximum of 77mOhm.
The self-resonant frequency (SRF) of the PG0085.332NL is typically 40MHz.
The PG0085.332NL uses a Nonstandard surface mount package.
The operating temperature range for the PG0085.332NL is -40°C to 130°C.
