| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,374 pcs
|
1374 pcs | On Request | 1 | On Request | On Request | 1113+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

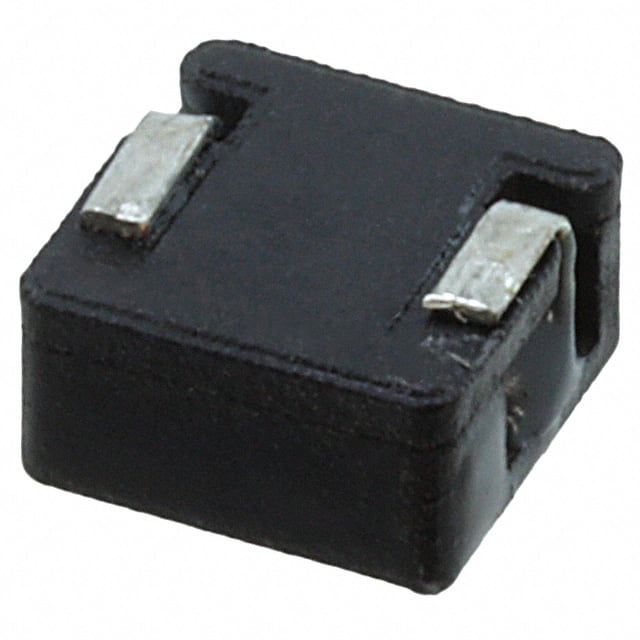

This Pulse Electronics PG0083.332NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 3.3 µH with a tolerance of ±25% and a maximum DC resistance of 27.5 mOhm. The component is rated for a continuous current of 5.5A and operates within a temperature range of -40°C to 95°C. Its unshielded construction and nonstandard package size are key physical characteristics.
With a height of 4.00mm, length of 6.80mm, and width of 6.80mm, this inductor is suitable for various electronic circuits requiring stable inductance and current handling capabilities. The RoHS3 compliant status indicates adherence to environmental regulations.
This fixed inductor is a reliable component for power supply filtering, energy storage, and other applications where precise inductance is required. Its robust construction and specified operating parameters make it a suitable choice for demanding designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PG0083.332NLT is 3.3 µH.
The continuous current rating for the PG0083.332NLT is 5.5A.
The maximum DC resistance (DCR) for the PG0083.332NLT is 27.5 mOhm.
The operating temperature range is -40°C to 95°C.
This inductor is designed for surface mount.
