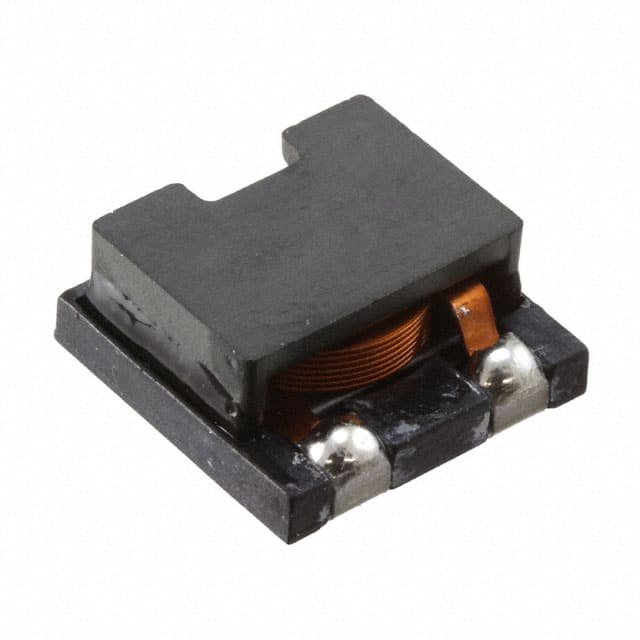

PG0006.552NLT The Pulse Electronics PG0006.552NLT is a fixed inductor with 5.5µH inductance and an 8A current rating. It features a surface mount package.
Mfr Part #:

PG0006.552NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PG0006.552NLT is a fixed inductor with 5.5µH inductance and an 8A current rating. It features a surface mount package.
✓ Total Stock: 1,576 pcs
$ Price Range: $0.52

PG0006.552NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,576 pcs
On Request
1576 pcs On Request 1 On Request On Request 1345+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG0006.552NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

PG0006.552NLT Description

Short technical summary and product information.

This Pulse Electronics PG0006.552NLT is a fixed inductor designed for surface mount applications. It offers an inductance value of 5.5 µH and a robust current rating of 8 A.



The inductor has a maximum DC resistance (DCR) of 12.4 mOhm, ensuring efficient operation. It is designed to operate within a temperature range of -40°C to 130°C. The component is unshielded and has a tolerance of ±20% for its inductance value.



With dimensions of 13.40mm in length and 13.28mm in width, and a height of 6.00mm, this inductor is suitable for various electronic designs. It is packaged on tape and reel for automated assembly processes.

PG0006.552NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PG0006.552NLT Fixed Inductor
Subcategory: Fixed Inductor

PG0006.552NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG0006.552NLT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG0006.552NLT Features

  • Fixed inductor with 5.5µH inductance.
  • Rated for 8A maximum current.
  • Low 12.4mOhm maximum DCR.
  • Surface mountable for automated assembly.
  • Operates from -40°C to 130°C.

PG0006.552NLT Applications

  • Suitable for power supply circuits.
  • Used in DC-DC converters.
  • Ideal for filtering applications.
  • Component for signal processing.

PG0006.552NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance value of the PG0006.552NLT?

The inductance value is 5.5 microhenries.

What is the maximum current rating of this inductor?

The maximum current rating is 8 amperes.

What is the DC resistance of the PG0006.552NLT?

The DC resistance is 12.4 milliohms.

What are the physical dimensions of this inductor?

It measures 6.00mm in height, 13.40mm in length, and 13.28mm in width.

Is the PG0006.552NLT RoHS compliant?

Yes, it is RoHS3 compliant.
