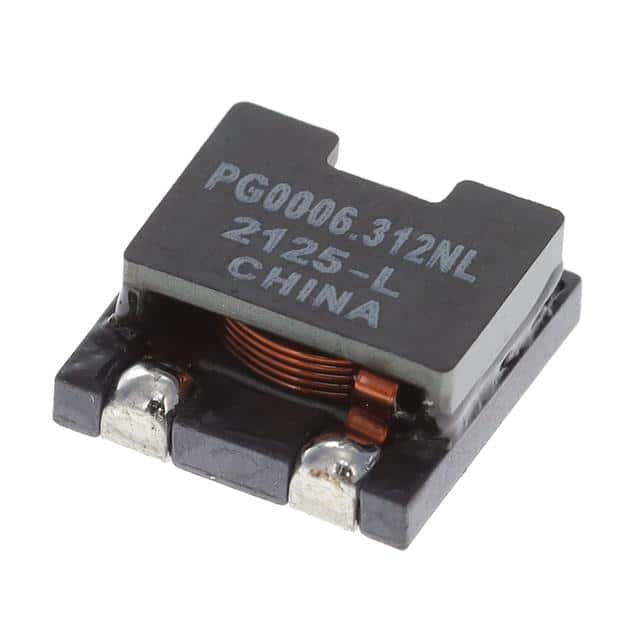

PG0006.312NLT The Pulse PG0006.312NLT is a surface mountable, unshielded fixed inductor with a 3.1µH inductance and a 12A current rating. It features a low DC resistance of 7.5mOhm Max.
Mfr Part #:

PG0006.312NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse PG0006.312NLT is a surface mountable, unshielded fixed inductor with a 3.1µH inductance and a 12A current rating. It features a low DC resistance of 7.5mOhm Max.
✓ Total Stock: 27 pcs
$ Price Range: $0.52

PG0006.312NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PG0006.312NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Termination Style
Tolerance
Width
View Similar Products (0)

PG0006.312NLT Description

Short technical summary and product information.

The Pulse PG0006.312NLT is a fixed inductor designed for power applications. It offers a nominal inductance of 3.1µH with a tolerance of ±20%, and can handle a current rating of 12A. The DC resistance (DCR) is specified as a maximum of 7.5mOhm.



This component is designed for surface mounting and features an unshielded construction. Its operating temperature range is from -40°C to 130°C. The physical dimensions are approximately 13.40mm in length, 13.28mm in width, and 6.00mm in height.



It is suitable for various power applications where a reliable and robust inductor is required. The surface mount package facilitates automated assembly processes.

PG0006.312NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse PG0006.312NLT Fixed Inductor
Subcategory: Fixed Inductors

PG0006.312NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PG0006.312NLT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PG0006.312NLT Features

  • Fixed inductor with 3.1µH inductance.
  • Rated for a maximum current of 12A.
  • Low DC resistance of 7.5mOhm Max.
  • Surface mountable for automated assembly.
  • Unshielded construction for power applications.

PG0006.312NLT Applications

  • Suitable for power supply circuits.
  • Used in DC-DC converters.
  • Ideal for filtering applications.
  • Component for power management modules.

PG0006.312NLT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the PG0006.312NLT?

The inductance value is 3.1 microhenries.

What is the maximum current rating for this inductor?

The maximum current rating is 12 amperes.

What is the DC resistance of the PG0006.312NLT?

The DC resistance is 7.5 milliohms.

What is the operating temperature range of this inductor?

It operates from -40°C to 130°C.

What mounting type does this inductor use?

It is a surface mount component.

Is the PG0006.312NLT RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.
