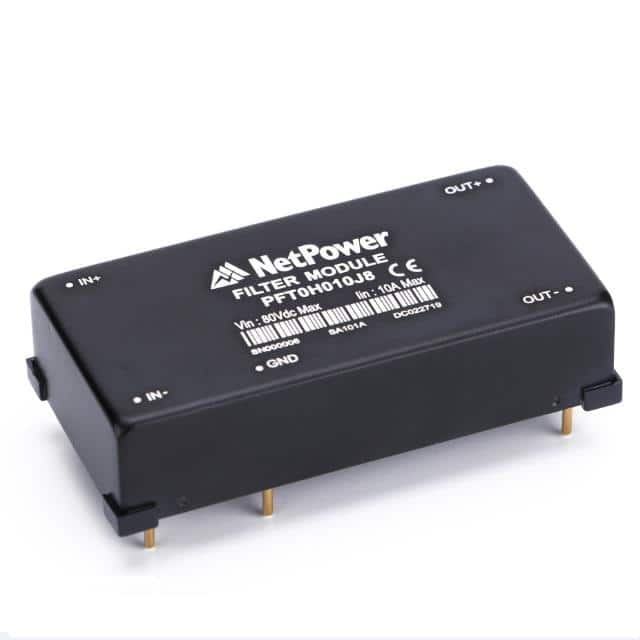

The NetPower PFT0H010J8 is a filter module engineered to reduce both differential-mode and common-mode conducted noise generated by DC-DC converters. This multi-stage filter is optimized for high insertion loss across the frequency range regulated by FCC and CISPR for conducted emissions.
With a maximum operating voltage of 80Vdc and a maximum continuous current of 10A RMS, this filter is suitable for a wide range of DC-DC converter applications. It operates within a wide temperature range of -40°C to +100°C.
The PFT0H010J8 features an industry-standard package with compact dimensions of 2" x 1", making it easy to integrate into designs. The module has a resistance per leg of 16.3 mΩ and an isolation voltage of 2,250 Vdc from I/O to GND. It is designed for through-hole mounting.
This filter module provides significant attenuation, with typical common-mode insertion loss reaching 65 dB at 30MHz and differential-mode insertion loss reaching 69 dB at 1MHz in a 50-ohm circuit. It also boasts a calculated MTBF of 106 hours under specific operating conditions.
The maximum continuous operating voltage is 80 Vdc.
The maximum continuous operating current (RMS) is 10 A.
The filter module operates between -40°C and +100°C.
The typical common-mode insertion loss in a 50-ohm circuit at 30MHz is 65 dB.
The typical differential-mode insertion loss in a 50-ohm circuit at 1MHz is 69 dB.
No, the filter module is not internally fused. An input line fuse must always be used.
