Mfr Part #:

PFM4914VB6M24D0CA0

Mfr Name: Vicor

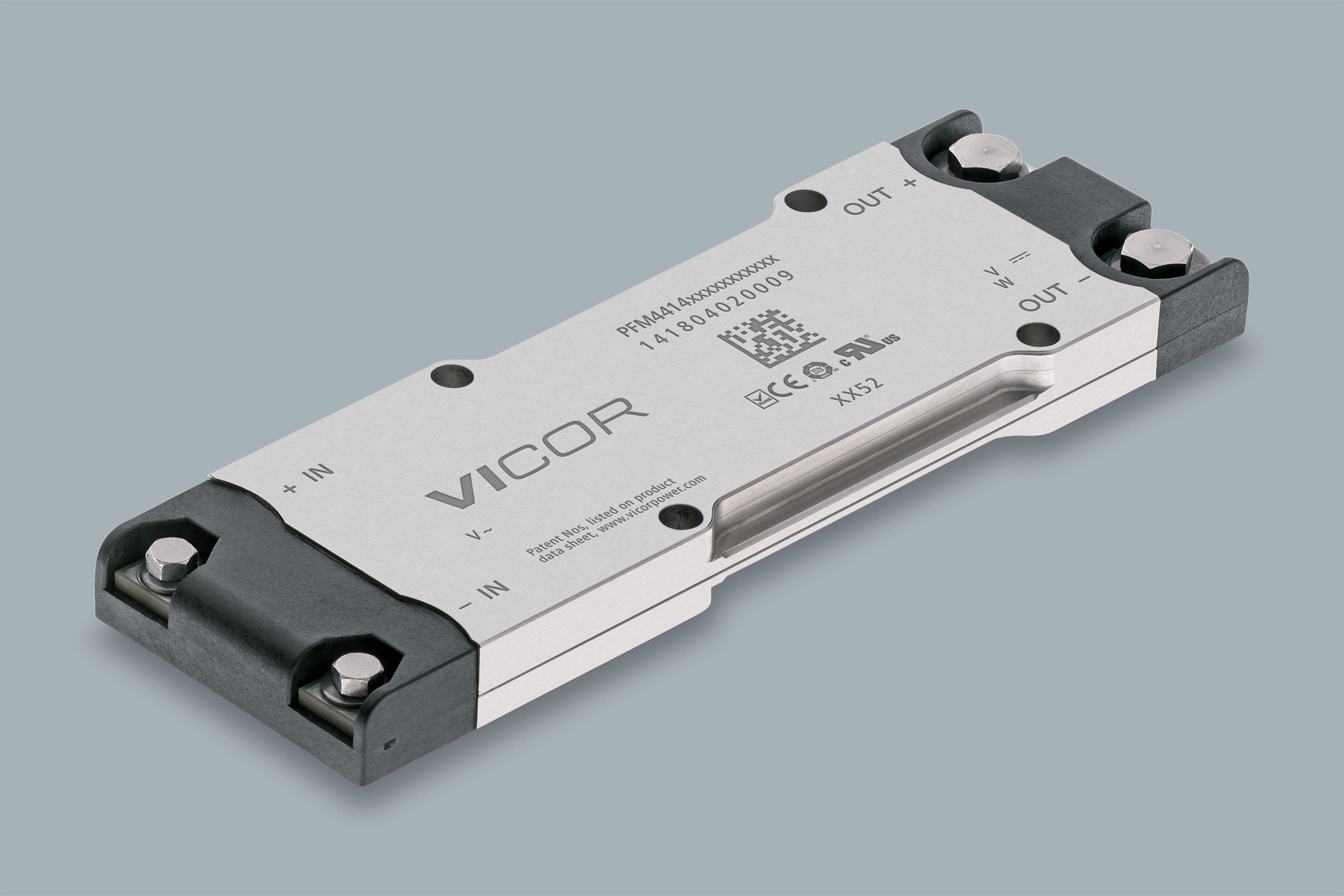

The Vicor PFM4914VB6M24D0CA0 is a 400W single-phase AC-DC converter component. It offers a wide input voltage range and chassis mount packaging.

Stock on Request

PFM4914VB6M24D0CA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	AC DC Converters
Manufacturer Name	Vicor
Control Interface	Always On
Input Voltage	85.0 - 264.0 V
Mounting Type	Chassis Mount
Operating Temperature	-20 to 100 °C
Package / Case	4914 VIA
Power	400.0 W

View Similar Products (0)

PFM4914VB6M24D0CA0 Description

Short technical summary and product information.

The Vicor PFM4914VB6M24D0CA0 is a single-phase AC-DC converter component designed for efficient power packaging. It operates with an input voltage range of 85.0 to 264.0 V and provides an output voltage of either 24.0 V or 48.0 V, delivering up to 400.0 W of power.

This converter features an 'Always On' control interface and is housed in a 4914 VIA package, designed for chassis mounting. The operating temperature range is from -20°C to 100°C. Its slim-line design allows for efficient integration into system thermal-management solutions, offering a compact alternative to larger competitive products.

The PFM series converters are part of Vicor's modular approach to power, providing flexible and scalable solutions for various applications. The dimensions are 124.75 x 35.54 x 9.40 mm (4.91 x 1.40 x 0.37 in).

PFM4914VB6M24D0CA0 Quick Information

Product Type: AC-DC Converter

Series: PFM

Canonical Name: PFM4914VB6M24D0CA0 AC-DC Converter

Subcategory: Single-phase AC-DC converter component

PFM4914VB6M24D0CA0 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PFM4914VB6M24D0CA0 Features

Wide input voltage range 85-264V.
Selectable 24V or 48V output.
400W maximum power output.
Chassis mountable VIA package.
Operates from -20°C to 100°C.

PFM4914VB6M24D0CA0 Applications

Suitable for compact power systems.
Efficient thermal management integration.
Used in various AC-DC conversion needs.
Designed for scalable power solutions.

PFM4914VB6M24D0CA0 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

85 to 264 V AC.

What output voltages are available?

24V and 48V.

What is the power rating?

400W.

What is the operating temperature range?

-20 to 100 °C.

What is the package type?

4914 VIA.

What is the mounting type?

Chassis Mount.

What are the dimensions?

124.75 x 35.54 x 9.40 mm (4.91 x 1.40 x 0.37 in).
