| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

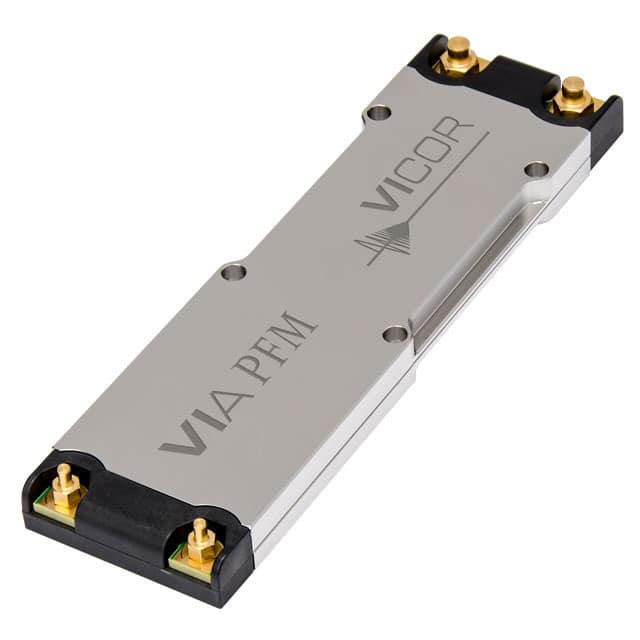

The Vicor PFM4914BB6M48D0C04 is an enclosed AC DC converter designed for commercial applications. It provides a single 48V output with a maximum current of 8.33A, delivering a total power of 400W. The converter accepts a wide input voltage range of 85 to 264 VAC, making it versatile for various power grids.
Key features include external rectification requirement and Power Factor Correction (PFC) for improved efficiency and power quality. The operating temperature range is -20°C to 100°C with derating. This model is approved by CE, cTUVus, and cURus agencies.
Mechanically, the PFM4914BB6M48D0C04 is a 4-DIP module designed for through-hole mounting. Its dimensions are 124.8mm in length, 35.5mm in width, and 9.3mm in height. The unit boasts a high efficiency of 92% and complies with RoHS3 standards.
The output voltage is 48V.
The power rating is 400W.
The input voltage range is 85 ~ 264 VAC.
The operating temperature range is -20°C to 100°C (With Derating).
It is a 4-DIP Module package.
It is designed for through-hole mounting.
