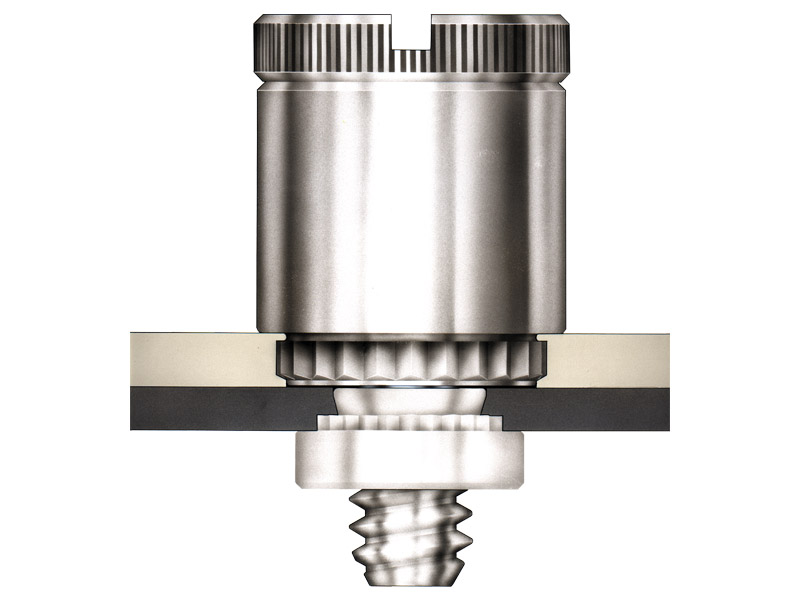

The PEM PFK-M3-84 is a captive screw designed for efficient installation onto PC boards. It employs broaching technology for secure fastening. The screw is made from durable 300 Series Stainless Steel, ensuring resistance to corrosion and wear.
This component features an M3 external thread with a 6g specification according to ASME B1.13M. The retainer and spring are also made from 300 Series Stainless Steel, with the retainer finished to be passivated and/or tested per ASTM A380. The spring has a natural finish.
Designed for PC board applications, the PFK-M3-84 has a minimum sheet thickness requirement of 1.53mm. Its retaining ring is made of Nylon with a temperature limit of 200°F (93°C). The product category is classified as Captive Screws, Broaching for PC Boards – Metric Type PFK.
Installation performance data indicates a typical installation force of 1.1 kN, a typical pushout force of 245 N, and a typical torque-out of 1.5 N•m when installed in FR-4 Panel (3).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PFK-M3-84 captive screw has an M3 external thread.
The PFK-M3-84 captive screw, retainer, and spring are made from 300 Series Stainless Steel.
The minimum sheet thickness for installing the PFK-M3-84 is 1.53mm.
The typical pushout force for the PFK-M3-84 is 245 N.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
