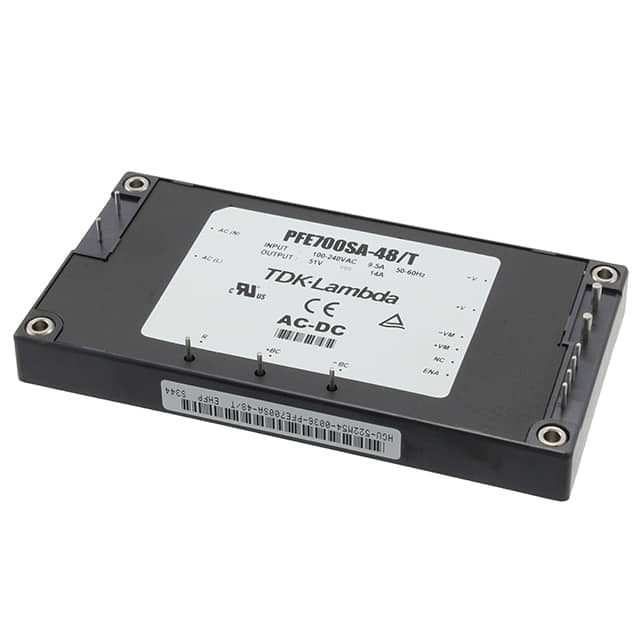

The TDK-Lambda PFE700SA-48 is an enclosed AC/DC converter designed for various applications, including ITE (Commercial). It delivers a stable 51V output voltage and a maximum power of 714W.
This converter features a wide AC input voltage range of 85 to 265 VAC, making it suitable for global use. It boasts a high efficiency of 91% and a power factor of 0.95 minimum, meeting EN61000-3-2 standards. The unit is equipped with features such as remote On/Off control and universal input.
Designed for reliability, the PFE700SA-48 operates within a broad temperature range of -40°C to 100°C (with derating) at the baseplate. It supports both series and parallel operation for added flexibility.
Mechanically, the converter has a compact footprint with dimensions of 116.8mm in length, 61.0mm in width, and 12.7mm in height. It utilizes a through-hole mounting type, facilitating integration into various electronic designs. The device is approved by CE, CSA, and UL, and complies with standards such as 60950-1 and 62368-1.
The PFE700SA-48 has an output voltage of 51V.
The PFE700SA-48 has a power rating of 714W.
The AC input voltage range is 85 to 265 VAC.
The efficiency of the PFE700SA-48 is 91%.
The operating temperature range is -40°C to 100°C (with derating).
The PFE700SA-48 uses through-hole mounting.
It complies with standards 60950-1 and 62368-1.
